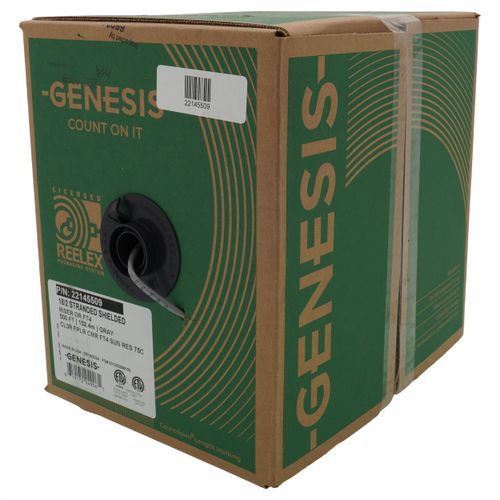

500 ft - 18/2 Stranded CL3R (PVC) Honeywell Genesis Control Cable
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$174.04 each
In Stock
Order by 6PM, receive Tomorrow
MANUALS (1)
This item replaces: 12145009, 12145509
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
500' Length
Grey Jacket
300v
0.154 OD
Description
–
This Genesis cable features 2 stranded 18 AWG copper conductors, an overall foil shield with a drain wire, and a riser rating. Choose this cable for a dependable connection for security, controls, audio, and other low-voltage applications.
- Cable Length: 500 ft
- Cable Rating: Riser, FT4
- Cable Listing: CL3R, FPLR, CMR, FT4, Sunlight Resistant
- Wire Gauge (AWG): 18
- Number of Strands:19
- Conductor Material: Bare Copper
- Number of Conductors: 2
- Conductor Insulation Material: Polypropylene
- Insulation Colors: Black, Red
- Shielding: Yes
- Shielding Type: Overall Foil
- Rip Cord: Yes
- Jacket Material: PVC
- Nominal Outer Diameter: 0.154 in.
- Rated Voltage (Max): 300 Volts
- DC Resistance (Max): 6.66 Ohms / 1000 ft. at 20 °C
- Velocity of Propagation: 67%
- Temperature Rating (Max)75 °C
- Temperature Rating (Min)-20 °C
Specs
–
| Length (Feet): | 500' |
|---|---|
| Wire Type: | Low Voltage |
| AWG: | 18 |
| Features: | Riser-Rated PVC Coated |
| Type: | Shielded Stranded |
| Application: | Multi-Purpose |
| Color: | Grey Jacket |
| Voltage: | 300v |
| Conductors: | 2 |
| Outside Diameter: | 0.154 |
| Approvals: | CL3R FPLR FT4 CMR |
| Package Type: | Reels |
