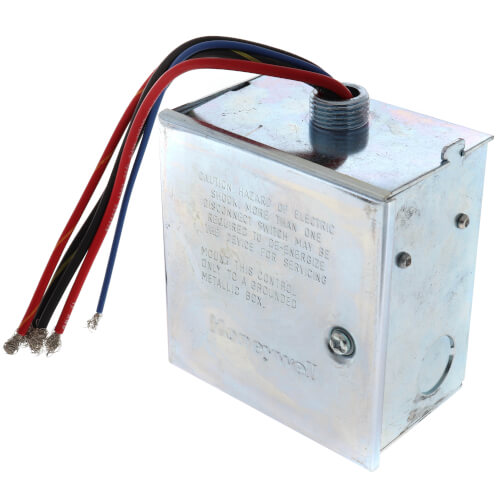

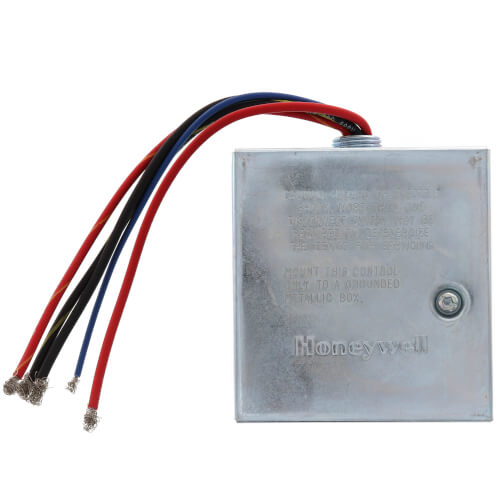

24 V Electric Heater Relay with SPST switching
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$205.75 each
In Stock
Get 14 Mon, Apr 3
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Vertical, Horizontal
3-7/8"
1-1/2" Depth
Description
–
Use with two-wire, 24 Vac thermostat to control electric heating equipment such as baseboard, ceiling cable and duct heaters.
Specifications
Features
Specifications
- Heater Relay with Spst switching
- Switching: SPST
- Electrical Connections (main): Leadwires
- Electrical Contacts (Full Load): 7.0 A @ 208 Vac, 240 Vac, 277 Vac; 14 A @ 120 Vac
- Electrical Ratings, Contacts (locked rotor): 42 A @ 208 Vac, 240 Vac, 277 Vac; 84 A @ 120 Vac
- Electrical Ratings, Contacts (resistive): 22 A @ 120 Vac, 208 Vac, 240 Vac; 19 a @ 277 Vac
- Frequency: 60 Hz, 50 Hz
- Dimensions: 3 7/8 in. high x 2 13/16 in. wide x 1 1/2 in. deep
- Temperature Ratings: -20 F to +150 F
- Includes: Enclosure w/conduit bushing and integral transformer; dual load.
Features
- Operate with each cycle of the thermostat (4 to 6 cycles per hour).
- Each relay switches up to a 5,000 W load.
- Contacts make and break in about 75 seconds.
- Mount in any position.
- Includes 1/2 in. (13 mm) male conduit bushing.
Specs
–
| Mount: | Vertical Horizontal |
|---|---|
| Type: | SPST |
| Height: | 3-7/8" |
| Width: | 2-13/16" |
| Depth (Inches): | 1-1/2" |
| Electrical Ratings (AFL): | 14.0 A @ 120 Vac 7.0 A @ 208 Vac, 240 Vac, 277 Vac |
| Electrical Ratings (ALR): | 84 A @ 120 Vac 42 A @ 208 Vac, 240 Vac, 277 Vac |
| Electrical Ratings (Resistive): | 22 A @ 120 Vac, 208 Vac, 240 Vac 19 A @ 277 Vac |
| Hertz: | 60 50 |
| Features: | Plastic End Caps |
| Wiring: | leadwires |
