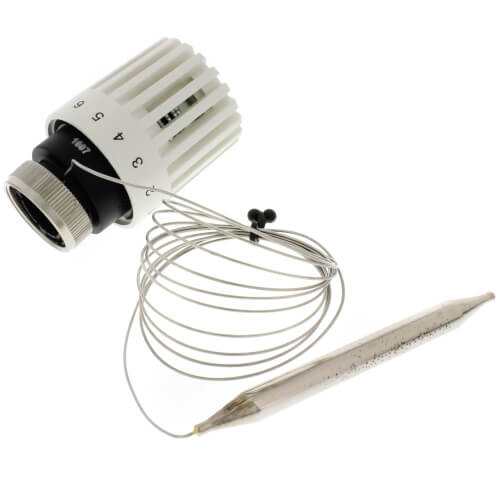

Valve Actuator with Remote Sensor
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$183.29 each
In Stock
Get 3 Tue, Jul 7
Order by today, receive Tuesday
Temperature Range (F):
50°F to 122°F
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
V135 Series
50°F to 122°F
1-3/16" Diameter
Description
–
For use in hydronic heating systems with V135 Valves in a three-way mixing or diverting application. Controls loop temperature in radiant heating systems.
Product Features:
Product Specifications:
Product Features:
- T100R Thermostatic Actuator includes strap-on-pipe sensor.
- Knurled ring on T100R control head for easy attachment to V135.
Product Specifications:
- Description: Thermostatic Mixing or Diverting Valve Actuator with remote sensor(50-120F), 6ft 8 in capillary and 1 3/16 in. collar diameter
- Application Type : Thermostatic Radiator Controller for use with V135 valve body for diverting or mixing applications.
- Application: Standard Three-way mixing and diverting applications in hydronic heating systems requiring remote sensing
- Used with Valve: V135
- Sensor (integral or remote): Remote
- Setpoint (Integral or Remote): Remote
- Capillary Length: 6 ft. 8 in.
- Temperature Range: 50 F to 122F
- Collar Diameter: 1-3/16 in.
Specs
–
| Application: | Accessory |
|---|---|
| Used With: | V135 Series |
| Sensor Type: | Remote |
| Setpoint: | Remote |
| Temperature Range (F): | 50°F to 122°F |
| Diameter (Inches): | 1-3/16" |
| Capillary Length: | 80" |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back on Sunday to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Q&A
2 Questions2 Questions
Q: I want to use the 3-way valve to flow through some baseboard or to bypass it. Can I mount the sensing bulb outside the cabinet to control the space temp this way?
Asked by JonesZ 15 years ago
Add your answer
Verified Reply- PexSupply StaffYes you can do that.
Was this review helpful to you?
Q: If I attach this T100R to a V135A1006 mixing valve will it ajust the outflow temp to maintain 120 degees. Currently when the system demands heat, and just starts, the outflow temp is consideable colder because the return water is cold. It takes some time before the outflow stabilizes at 120 degrees. If this works the way I think, I can put this on the mixing valve and place the sensor on the outflow pipe and it will ajust the valve so that the temp stays at 120 degrees. Am I correct? Thanks for your time.
Asked by Greg 16 years ago
Add your answer
Verified Reply- PexSupply StaffYou will need T100R1012 which has a range of 86 to 158F. Please note this is not a quick opening valve and will take some time to adjust to the set point. If a quicker acting valve is necessary you should install a motorized valve and actuator.
Was this review helpful to you?
