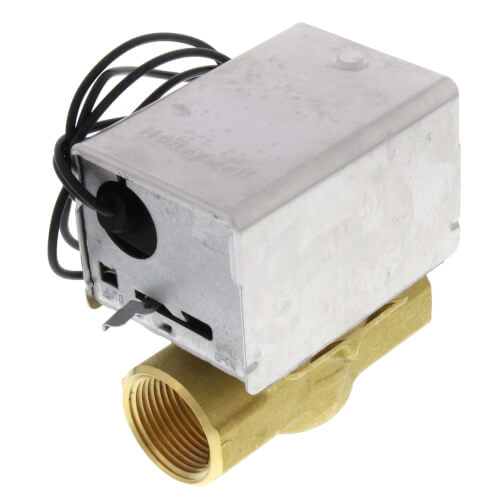

1" NPT Connection Zone Valve (120v)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$204.90 each
In Stock
Get 3 Tue, Jun 23
Order by today, receive Tuesday
MANUALS (2)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
2-Way, Straight-Through
Threaded Connection
10 Cv
1"
120v
Normally Closed
Description
–
Note: Use this valve in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water.
Two way on-off line voltage valves consist of an actuator motor and valve assembly for controlling the flow of hot or chilled water.
Specifications
Features
Two way on-off line voltage valves consist of an actuator motor and valve assembly for controlling the flow of hot or chilled water.
Specifications
- Description: 120V 1 in. NPT Connection Line Voltage Motorized Zone Valves
- Application: Hydronic Control
- Connection Type : NPT
- Pipe Size: 1"
- Body Pattern: Two-way, Straight-through
- Capacity: 10 Cv
- De-Energized Position: Normally Closed
- Maximum Close-off Pressure (psi): 6.5 psi
- Fluid Temperature Range: 40 F to 200 F
- Electrical Connections: 18 in. leads
- Power Consumption: 9.6 VA
- Nominal Timing (sec, min): 15 Seconds
- Valve Action: Spring return to close
- Maximum Ambient Temperature (F): 125F
- Dimensions: 4 in. high x 3 23/32 in. wide x 2 3/8 in. deep
- Type: 2 position
- Static Pressure: 125 psi
- Voltage: 120 Vac
Features
- Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored.
- All models may be installed without disassembling the valve.
- Compact construction for easy installation.
- Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system.
- Motor may be replaced without removing the valve body or draining the system.
- Suitable for heating and cooling applications
Specs
–
| Application: | Zoning |
|---|---|
| Size: | 1" |
| Width (Inches): | 3-23/32" |
| Depth (Inches): | 2-3/8" |
| Height: | 4" |
| Material: | Brass |
| Flow Capacity (Cv): | 10 |
| Position: | Normally Closed |
| Voltage: | 120v |
| Wiring: | 18" Leads |
| Body Pattern: | 2-Way Straight-Through |
| Hertz: | 60 |
| Max Ambient Temp (°F): | 125°F |
| Max Close-Off PSI: | 6.5 psi |
| Temperature Range (F): | 40°F - 200°F |
| Max Temp (F): | 200°F |
| Min Temp (F): | 40°F |
| Connection Type: | Threaded |
| Valve Action: | Spring Return to Close |
| Power Consumption: | 9.6 VA |
| Nominal Timing: | 15 Seconds |
| Static Pressure: | 125 psi |
| End Switch: | No |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
3 Replacement Parts
Replacement head for V4043A, (120v, 60 Hz)
SKU: 40003916-024
Honeywell Home2 Way Powerhead Conversion Kit (Water)
SKU: 40003918-006
Honeywell Home
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
5 out of 8 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-8 of 8 reviews
I have used this product in the past and would order again
Just what the doctor ordered! I just bought a cape house with a dual zone system I believe the old flow control valves were bad because of gravity heating. So I to those out and installed 2, zone valves which I now have a healthy patient again. Oh I'm a retired HVAC technician so I have run into this issue once before.
Mad Munk
Ma
3 years ago
Verified Buyer
Was this review helpful to you?
Product worked as advertised.
The valves worked as described and the people from Supply House delivered the product same day.
Ed
Nc
4 years ago
Verified Buyer
Was this review helpful to you?
yes
works as advertised
no nickname
me
8 years ago
Verified Buyer
Was this review helpful to you?
buy it again and again
Simple to wire.
jj
New Hampshire
12 years ago
Verified Buyer
Was this review helpful to you?
Exactly what I needed
The Great thing about this product is you do not need any low-voltage transformers. Wire it right into the circulator. So simple.
Johnny
New Hampshire
12 years ago
Verified Buyer
Was this review helpful to you?
The ONLY way to control heat zones.
If your heating system has water hammer when zones kick on and off, this valve eliminates water hammer, period. I tried two other brands of valves before installing this Honeywell valve. I will not use another brand of valve for zone control ever again. And, as usual, PEX Supply delivers the goods on time and at a great price.
EDD
Haverhill, MA
12 years ago
Was this review helpful to you?
Great Valve, Exactly what I needed
My hydronic heating system is run by multiple circulators and found that each one caused flow in the others. Putting a zone valve on each loop gave perfect control while giving each loop the maximum heat flow. These valves are great.
Alex
Somerville, NJ
13 years ago
Verified Buyer
Was this review helpful to you?
Works as it should. Great product!
Works as it should. My application was for my greenhouse. I hooked it directly to my 110v thermostat.
Marty Mcfly
Shepherdsville, Ky
14 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: Is this valve suitable to open automatically during a power outage to a heat dump zone?
Asked by Doug 12 years ago
Add your answer
Verified Reply- Supplyhouse Staffit is normally closed when not powered it can will be closed unless manually opened.
Was this review helpful to you?
Q: Does this valve draw power constantly while energized or only while changing states?
Asked by Dsimonl 12 years ago
Add your answer
-
Yes, in the open position only though. Thank You, Ted Karadavis
Was this review helpful to you?
-
That valve will draw power while energized, and the valve is open. A spring will close the valve when de-energized. There is not much wattage or power use. Ralph Gatten
