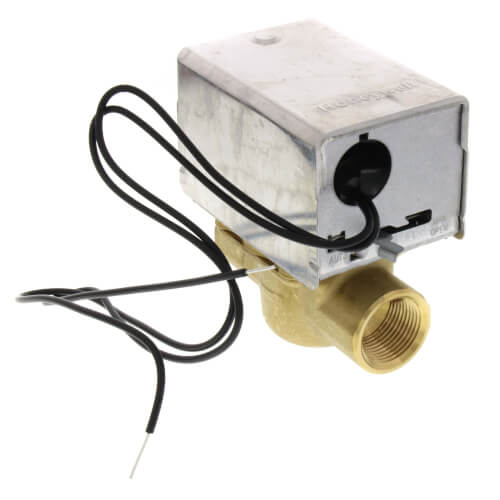

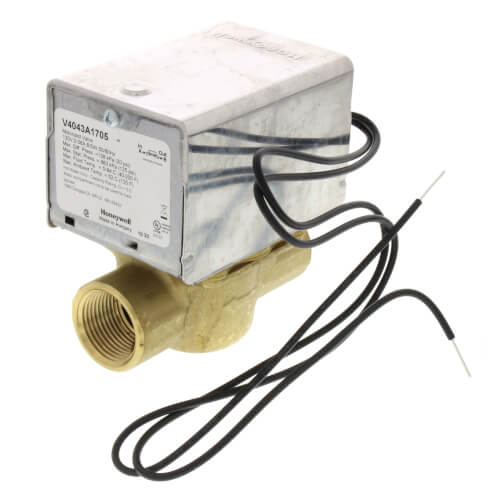

Two way on-off line voltage valves consist of an actuator motor and valve assembly for controlling the flow of hot or chilled water.
- Description: 120V 3/4 in. NPT Connection Line Voltage Motorized Zone Valves
- Application: Hydronic Control
- Connection Type : NPT
- Pipe Size: 3/4"
- Body Pattern: Two-way, Straight-through
- Capacity: 3.5 Cv
- De-Energized Position: Normally Closed
- Maximum Close-off Pressure (psi): 20 psi
- Fluid Temperature Range: 40 F to 200 F
- Electrical Connections: 18 in. leads
- Power Consumption: 9.6 VA
- Nominal Timing (sec, min): 15 Seconds
- Valve Action: Spring return to close
- Maximum Ambient Temperature (F): 125F
- Dimensions: 4 in. high x 3 23/32 in. wide x 2 3/8 in. deep
- Type: 2 position
- Static Pressure: 125 psi
- Voltage: 120 Vac
- Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored.
- All models may be installed without disassembling the valve.
- Compact construction for easy installation.
- Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system.
- Motor may be replaced without removing the valve body or draining the system.
- Suitable for heating and cooling applications
