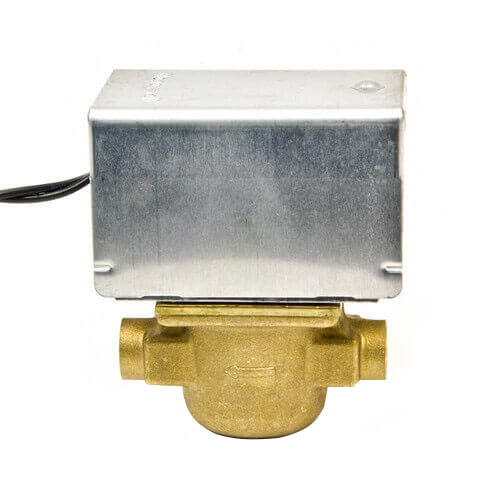

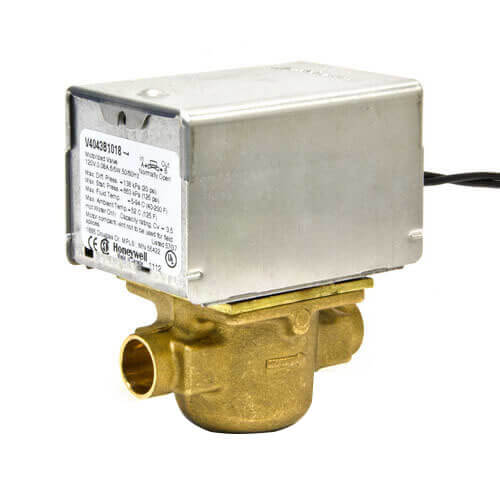

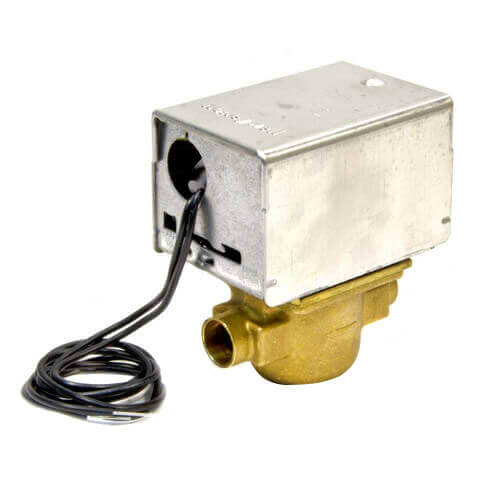

1" Sweat Connection Zone Valve, normally closed (24v)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
2-Way, Straight-Through
Sweat Connection
3.5 Cv
1"
24V
Normally Closed
Description
–
Two-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water.
Features
Specifications
Features
- Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored.
- All models may be installed without disassembling the valve.
- Compact construction for easy installation.
- Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system.
- Actuator motor may be replaced without removing the valve body or draining the system.
Specifications
- 24V 1 in. Sweat Connection Low Voltage Motorized Zone Valves
- Application: Hydronic Control
- Connection Type : Sweat
- Pipe Size: 1?
- Body Pattern: Two-way, Straight-through
- Capacity: 3.5 Cv
- De-Energized Position: Normally Closed
- Maximum Close-off Pressure (psi): 20 psi
- Fluid Temperature Range: 50 F to 200 F
- Electrical Connections: 18 in. leads
- Power Consumption: 7.7 VA
- Nominal Timing (sec, min): 15 Seconds
- Valve Action: Spring return to close
- Maximum Ambient Temperature (F): 125F
- Dimensions: 4 4 in. high x 3 11/16 in. wide x 2 3/8 in. deep
- Voltage: 24v
- Frequency: 60, 50 Hz
- Type: Use this valve in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water.
Specs
–
| Application: | Zoning |
|---|---|
| Size: | 1" |
| Width: | 3-11/16" |
| Depth (Inches): | 2-3/8" |
| Height: | 4" |
| Material: | Brass |
| Flow Capacity (Cv): | 3.5 |
| Voltage: | 24V |
| Position: | Normally Closed |
| Wiring: | 18" Leads |
| Body Pattern: | 2-Way Straight-Through |
| Hertz: | 60 50 |
| Max Ambient Temp (°F): | 125°F |
| Max Close-Off PSI: | 20 psi |
| Max Temp (F): | 200°F |
| Min Temp (F): | 50°F |
| Temperature Range (F): | 50°F - 200°F |
| Connection Type: | Sweat |
| Valve Action: | Spring Return to Close |
| Power Consumption: | 7.7 VA |
| Nominal Timing: | 15 Seconds |
| Static Pressure: | 125 psi |
| End Switch: | No |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Size
Flow Capacity (Cv)
Voltage
Position
Wiring
CURRENT ITEM
1"
3.5
24V
Normally Closed
18" Leads
3 Replacement Parts
Replacement head for V8043A, (24v, 60 Hz)
SKU: 40003916-021
Honeywell Home2 Way Powerhead Conversion Kit (Water)
SKU: 40003918-006
Honeywell Home
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
4.8 out of 5 reviews
100% would recommend this product
5 star
80%
4 star
20%
3 star
0%
2 star
0%
1 star
0%
Showing 1-5 of 5 reviews
I would buying this product again
It's a excellent product and service
Zelaya plumbing
Long islan NY
4 years ago
Verified Buyer
Was this review helpful to you?
Great service
Needed a part in a hurry - Supply House came through - great price - very quick delivery. THANK YOU
Howard
Lake Geneva, WI
8 years ago
Verified Buyer
Was this review helpful to you?
Just as described.
Worked great - product support was very helpful when making sure I was ordering the correct part.
WD
Ohio
10 years ago
Verified Buyer
Was this review helpful to you?
Quick delivery
I needed to replace the broken one and it was pretty easy with this product.
Jerzy
Chicago
14 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
I would buy this product again
I used 6 in my hot water system.
Jett
Bridgton, Me.
16 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
4 Questions4 Questions
Q: What is the difference between this one and the other 3/4" Sweat Connection valve (SKU V8043E1012)? http://www.pexsupply.com/Honeywell-V8043E1012-3-4-Sweat-Zone-Valve-Connection-18-Leads-1718000-p.
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffV8043E1012 has a SPST auxiliary end switch. V8043A1029 does not have an end switch.
Was this review helpful to you?
Q: does this valve come with (an end switch) with 2 red wires, for TT on the boiler?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffAccording to the manufacturer, this valve does not have an end switch as the V8043E1020 would.
Was this review helpful to you?
Q: Is it possible to power this device from a, say, 10 watt PV panel so that this valve would be open whenever enough sunlight exists. If a 10 watt panel would be too small, would a larger PV panel do what I am asking here?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffA V8043A1029 needs 24vac, 50/60hz and draw of 7.7va. You must provide this at all times or you will burn out the motor.
Was this review helpful to you?
Q: So in normal operation all the zones should be left in the auto position? The manual position is only for operation in times when there is no power?
Asked by Don 16 years ago
Add your answer
Verified Reply- PexSupply StaffYes, in normal operation all zones should be in the auto position. Yes, the manual position is only for operation in times of power failure.
