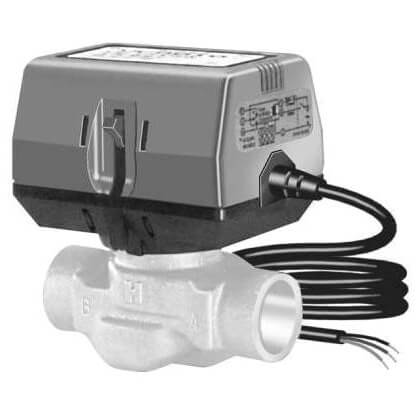

Valve Actuator, SPST, Two Position, 6VA, 120V, 50/60 HZ

Control central heating and/or cooling systems, fan coil systems, radiators and convectors. Depending on the model selected, it can be controlled by either a low or line voltage SPST or SPDT controller such as a room thermostat.

Product Features

• Use with two-way or three-way valves.
• Minimal actuator power consumption.
• Quick-connect or one meter cable electrical connections available.
• Quick and easy replacement of moving parts.
• Actuator head installation does not require draining the system.
• On/Off models with six second nominal timing
• Use two-position actuators with 1000 Series 2 way and 6000 Series 3-way VC valve bodies only.
• All VC Series actuator-valve combinations provide 60 psi close-off.

Product Specifications

• Mounting: Direct Coupled
• Frequency: 50 Hz; 60 Hz
• Electrical Connections: Cable
• Operating Humidity Range (% RH): 5 to 95% RH, non-condensing
• Supply Voltage: 120V
• Power Consumption: Driving-- 6 VA
• Shipping and Storage Temperature Range (F): -40 F to +150 F
• Ambient Temperature Range (F): 32 F to 150 F
• Switch Ratings: 2.2A (5 to 110 Vac)/1.0A (110 to 277 Vac) Inductive; Min. DC switching capability: 5 mA @ 24 Vac.
• Internal Auxiliary Switch: 1
• Fluid Temperature (F): 203 F
• Control Signal: Two position, SPST
• Fail Safe Mode: Stays in place
• Timing, Nominal: Driving @ 60 Hz-- 6 sec
• Maximum Differential Pressure Ratings (Close-off) (psi): 60 psid
• Manual Operation: Lever
