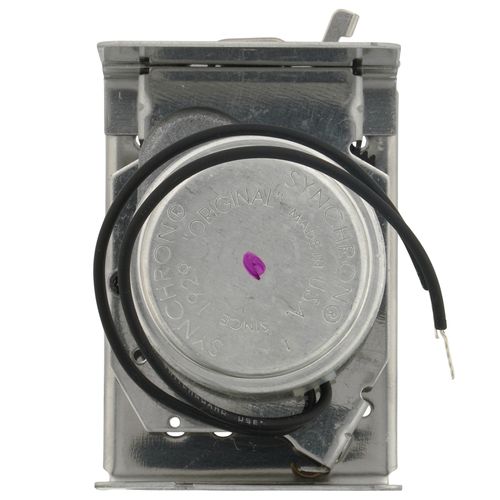

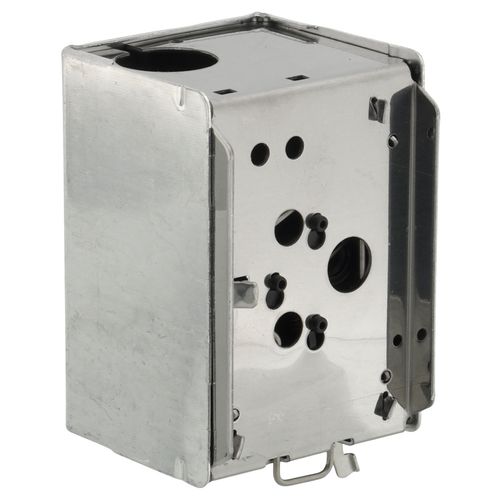

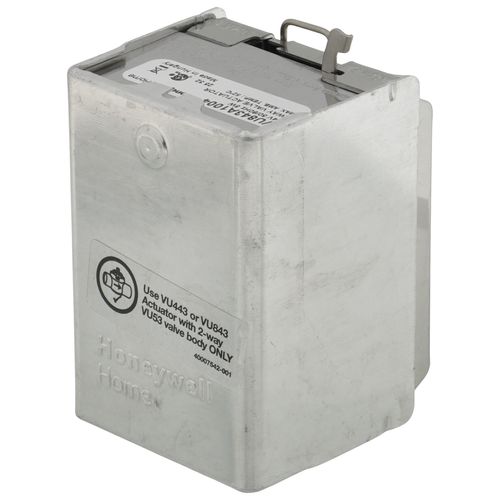

Valve Actuator - 24V - 6" Leads - 7/8" Hole Case End
Hover image to zoom
Valve Actuator - 24V - 6" Leads - 7/8" Hole Case End
Hover image to zoom
$70.31 each
In Stock
In Stock
Get 75 Fri, Mar 1
More Available
Fast Track Logo
Order by today, receive Friday
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

Voltage icon
24v
Temperature Range (F) icon
34°F to 125°F

Description

Two-position actuator for VU53 N.C. valve bodies, 24V 50/60Hz

Overview: The VU843 Fan Coil Valve Actuators are used in conjunction with the VU52, VU53 and VU54 valves for controlling the flow of hot or chilled water in commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors. These valves are humidity resistant and are suitable for use in condensing, non-corrosive environments.

Features:
  • Compact construction for easy installation.
  • Fits under the cover of most baseboard convectors with actuator fitted to valve body.
  • One-button, quick release. Secure 3-point, metal latch to valve body.
  • Spring return operation.
  • Stainless steel case and aluminum cover. Rust-proof nickel-plated motors available.
  • Line or low voltage, rust-resistant motors.
  • Manual opener for installation and valve operation on power failure.
  • Valve returns to automatic position when power is restored.
  • Actuator may be reinstalled or serviced without draining the system or disassembling the valve.
  • Slotted conduit hole for faster wiring.
  • Specs

    Actuator Type:

    Valve

    Application:

    HVAC

    Fail Safe Mode:

    Spring Return

    Control Signal:

    Two position

    SPST

    Temperature Range (F):

    34°F to 125°F

    Voltage:

    24v
