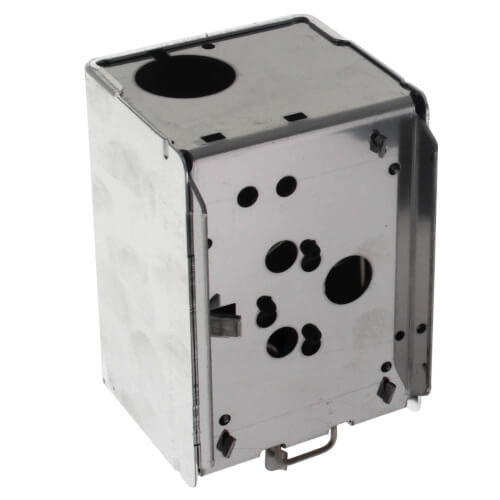

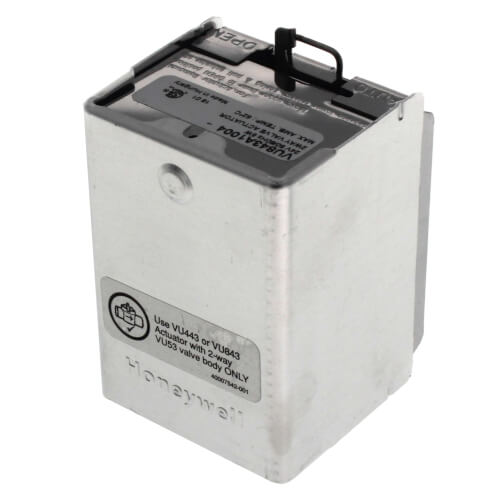

Valve Actuator - 24V - 6" Leads - 7/8" Hole Case End
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$86.21 each
In Stock
Get 41 Tue, Jun 16
Order by today, receive Tuesday
MANUALS (2)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
24V
34°F to 125°F
Description
–
Two-position actuator for VU53 N.C. valve bodies, 24V 50/60Hz
Overview: The VU843 Fan Coil Valve Actuators are used in conjunction with the VU52, VU53 and VU54 valves for controlling the flow of hot or chilled water in commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors. These valves are humidity resistant and are suitable for use in condensing, non-corrosive environments.
Features:
Compact construction for easy installation.
Fits under the cover of most baseboard convectors with actuator fitted to valve body.
One-button, quick release. Secure 3-point, metal latch to valve body.
Spring return operation.
Stainless steel case and aluminum cover. Rust-proof nickel-plated motors available.
Line or low voltage, rust-resistant motors.
Manual opener for installation and valve operation on power failure.
Valve returns to automatic position when power is restored.
Actuator may be reinstalled or serviced without draining the system or disassembling the valve.
Slotted conduit hole for faster wiring.
Overview: The VU843 Fan Coil Valve Actuators are used in conjunction with the VU52, VU53 and VU54 valves for controlling the flow of hot or chilled water in commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors. These valves are humidity resistant and are suitable for use in condensing, non-corrosive environments.
Features:
Specs
–
| Actuator Type: | Valve |
|---|---|
| Application: | HVAC |
| Fail Safe Mode: | Spring Return |
| Control Signal: | Two position SPST |
| Temperature Range (F): | 34°F to 125°F |
| Voltage: | 24V |
