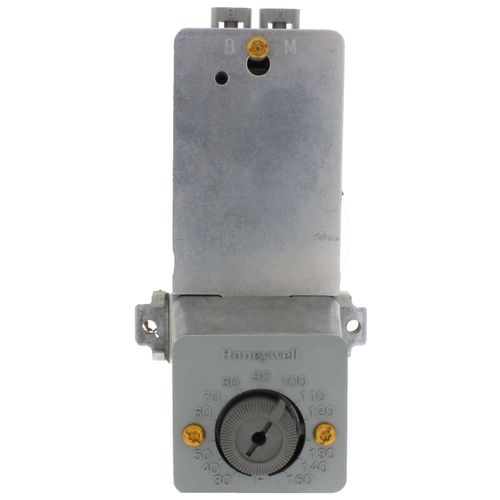

Direct Acting Pneumatic Temperature Controller w/ 2 pipes
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,220.15 each
In Stock
Get 2 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
30° to 150°F, 150°F Max Temp
30°F Min Temp
30 MAX PSI
5-9/16"
2-11/16" Depth
Duct
Description
–
Two-pipe, single temperature, pneumatic temperature controller used to provide proportional control of pneumatic valves and damper actuators in heating and air conditioning systems. Replacement devices are available for Johnson, Powers, Robertshaw, Barber-Colman, and older Honeywell two-pipe pneumatic temperature controller.
Features
Specifications
Features
- Fahrenheit or Celsius scales for all adjustments
- Pilot operated for high capacity.
- Direct Acting (DA) and Reverse Acting (RA) models are available.
- Adjustable setpoint and throttling ranges.
- Scales in bold type for high visibility.
- Replaceable filter cartridge.
- Single point or averaging elements.
Specifications
- Application: Remote Bulb Temperature
- Remote Bulb Sensor: yes
- Number of Pipes: 2
- Action: Direct Acting
- Scale Range: 30 F to 150 F
- Throttling Range: Factory set at 10 F with adjustment range of 5 to 25 F (Factory set at 6K with adjustment range of 3 to 15 K)
- Airflow Usage: 0.011 scfm (5.2 mL/s)
- Maximum Safe Operating Pressure (psi): 30 psi
- Max Operating Temperature: Element: 230 F, Controller: 150 F
- Includes: 8 ft (2.4 m) averaging element for duct mounting
Specs
–
| Application: | Remote Bulb Temperature |
|---|---|
| Action: | Direct Acting |
| Type: | Direct Acting Temperature Controller |
| Max Pressure (PSI): | 30 |
| Number of Pipes: | 2 |
| Max Temp (F): | 30° to 150°F 150°F |
| Min Temp (F): | 30°F |
| Throttling Range: | Factory set at 10°F w/ Adj. Range of 5 to 25°F |
| Max Operating Temp: | 230°F (Element) 150°F (Controller) |
| Height: | 5-9/16" |
| Width: | 3-1/8" |
| Depth (Inches): | 2-11/16" |
| Element Length: | 8 Ft |
| Features: | Remote Bulb Sensor |
| Mount: | Duct |
