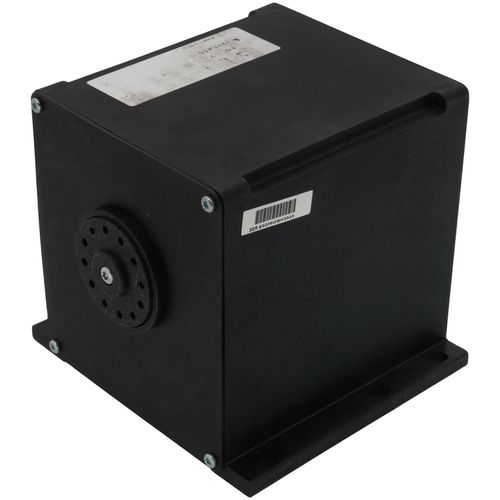

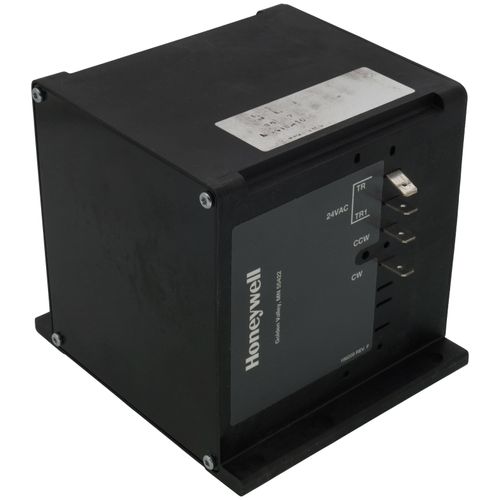

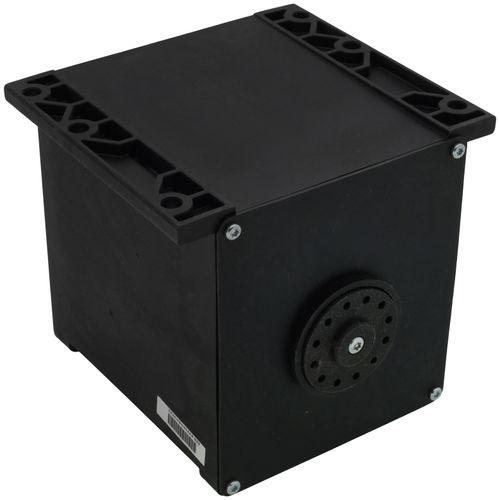

24 Vac Spring return-foot mounted motor

Spring return, 25 lb.-in. damper actuators provide SPDT floating, two-position, three-position or modulating control of economizer systems, ventilation dampers and combustion air dampers. M6415 suitable for use with direct digital control (DDC) systems.

Features

• Synchronous Motor.
• Quiet, high efficiency drive motor.
• Spring returns motor shaft to normal position on power interruption.
• High impact, glass-fiber reinforced plastic case is rugged, lightweight and corrosion resistant.
• Uses Q298B Linkage.

Specifications

• Control Signal: Floating, SPDT
• Fail Safe Mode: Spring Return
• Rotation To Open: CCW
• Torque Rating (lb-in.): 25 lb-in.
• Torque Rating, Breakaway (lb-in.): 40 lb-in
• Fixed Stroke: Yes
• Timing Min (sec): 90 Sec
• External Auxiliary Switches Available: Yes
• Frequency: 50 Hz, 60 Hz
• Electrical Connections: Quick-connect terminals
• Mounted: Foot-mounted
• Temperature Range: -25 F to 125 F
• Deadweight Load on Shaft (Power End): 15 lbs maxTiming Opening, Nominal (sec): 90 sec
• Angle of Rotation (Stroke Max (deg)): 90
• Run Time (Maximum (sec)): 90 Sec
• Spring Return Timing (Nominal (sec)): 18 sec
• Used with: Floating Controllers
