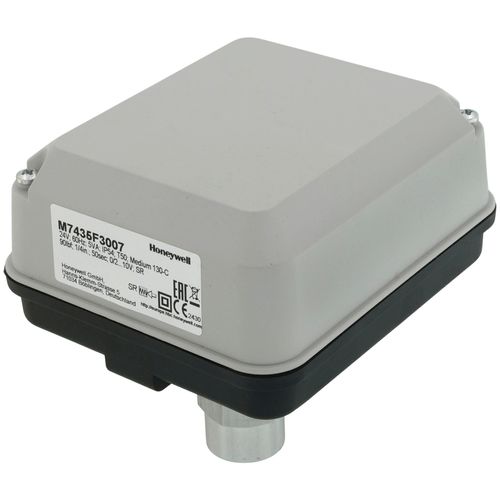

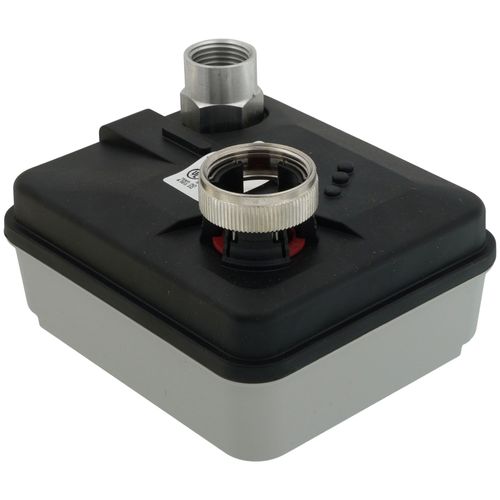

Spring Return Modulating Cartridge Globe Valve Actuator, 90 lb-f

Cartridge Globe Valve Spring Return Actuators are small electric actuators for individual room control that provide floating or modulating control of V5852, V5862 two-way or V5853, V5863 three-way valves.

Features:

Stem actuator retracts up on power failure. Fail safe mode depends on valve seat rest position.

Suitable for Excel/IRC system or other controllers providing specified signals.

Magnetic coupling for torque limitation independent of voltage supply and self-adjustment of the close-off port.

No mounting tools required.

Compact size allows installation in limited space of fan coil units, induction units, and small reheaters or recoolers.

Visual position indication (red disk).

Specifications:

Actuator Type: Valve

Torque/Force (lb-in., lbf): 90 lbf

Torque/Force (Nm, N): 400 N

Fail Safe Mode: (Normally open for 1/2 in. and 3/4 in. V5852 and V5862. Normally closed for all other V58XX valves.)

Fail Safe Mode: Spring Return, operator retracts up

Materials: Low Maintenance Plastic Housing

Control Signal: 0 to 10 Vdc

Control Signal: 2 to 10 Vdc

Supply Voltage: 24 Vac +20%, -15%

Number of Internal Auxiliary Switch: 0

Feedback: No

Manual operation: None (use valve dust cap)

Spring Return Torque/Force: 90 lbf

Spring Return Torque/Force: 400 N

Mounting: Threads onto V58XX valve bonnet

Spring Return Direction: Stem up

Spring Return Timing (Nominal (sec)): 10 sec

Timing, Nominal Driving @ 60 Hz (sec): 50 sec

Electrical Protection: Class I Insulation (24 Vac)

Power Consumption (Driving): 5 VA

Input Impedance 100K ohm

Cable Entry: Threaded conduit connector

Includes: 1/2" conduit hub

Comments: Direct/Reverse Acting Switch and high force for metal-seated valves

Used With: 1" to 1-1/2" V58XX Globe Valves
