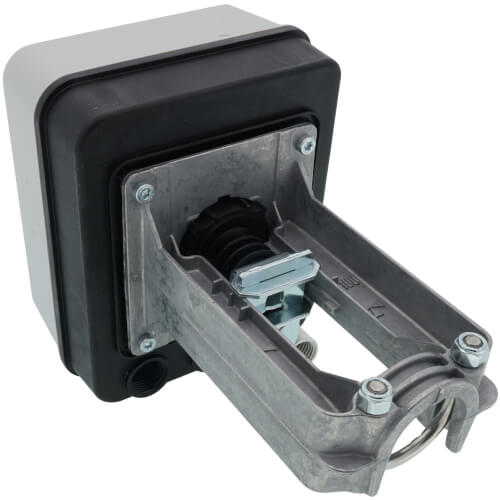

Linear-Stroke Valve Actuator 135 lbf
Hover image to zoom
Linear-Stroke Valve Actuator 135 lbf
Hover image to zoom
$370.22 each
In Stock
In Stock
Get 2 Tue, Feb 27
More Available
Fast Track Logo
Order by 5PM, receive Tuesday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Voltage icon
24v
Torque icon
135 lb-in Torque

Description

Used to control dampers in applications such as variable air volume (VAV) terminal units and for mounting on ball valves; suitable for use with SPDT or floating thermostats or building automation controls.

Features
  • Control for air damper applications with up to 10 sq.ft. assuming 3.5 in-lb per sq.ft. of damper area, velocity independent.
  • Superior A/C synchronous submotor for consistent timing and actuator longevity.
  • Eliminate need for limit switches or mechanical stops by providing magnetic coupling.
  • All models include manual declutch lever, and bag assembly with two minimum position setscrews.
  • Mount directly on 3/8 inch or 1/2 inch square or round damper shaft.
  • Selectable 45, 60, and 90 stroke in either clockwise or counterclockwise direction.


Specifications
  • Direct-Coupled, Linear-Stoke, Valve Actuator
  • Actuator Type: Valve
  • Application Type: HVAC
  • Control Signal: 2 to 10 Vdc
  • Number of Internal Auxiliary Switches: 0
  • Mounting: Directly on V5011/V5013 Globe Valves and VGF Flanged Globe Valves (3/4" or 20mm stroke)
  • Frequency: 60 Hz, 50 Hz
  • Manual Operation: Knob
  • Timing, Nominal Driving @ 60 Hz (sec): 60 Seconds
  • Temperature Range, Ambient (F):14 to 122F

Specs

Actuator Type:

Proportional

Floating

Fail Safe Mode:

Non-Spring Return

Manual Oper.:

Knob

Timing:

60 Seconds

Voltage:

24v

Torque:

135 lb-in
