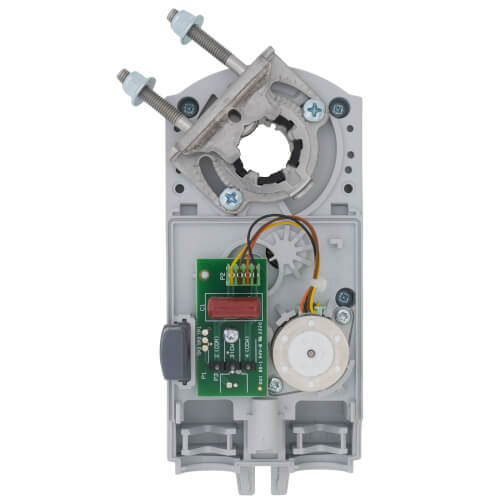

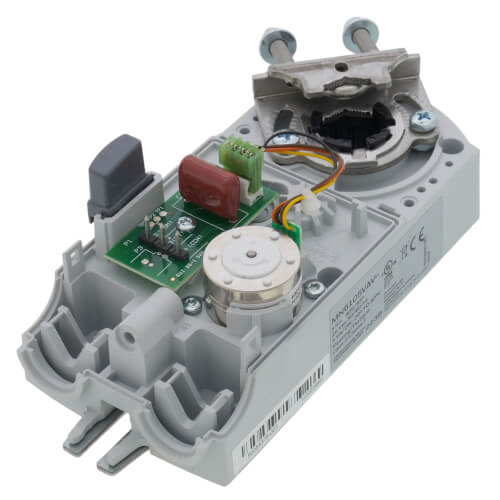

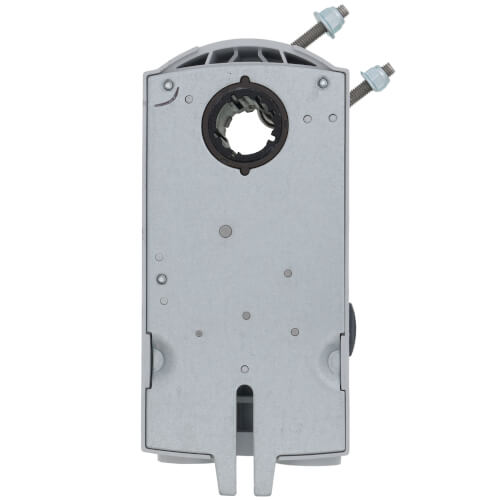

Non-Spring Return Floating VAV Actuator for Spyder/Stryker Controllers, 44 lb-in - 5Nm

Replacement actuator, only for use with Spyder and Stryker controllers with integral actuators. This non-spring return direct-coupled actuator provides floating control of VAV units. It provides reliable control for air damper applications with up to 10 sq ft (0.9 sq m) / 44 lb-in. (5 Nm) (seal-less damper blades; air friction-dependent).

Features:

• Declutch for manual adjustment
• Adjustable mechanical end limits
• Mountable in any orientation

Specifications:

• Application: HVAC
• Dimensions (in.): 7.31 in high x 5.31 in wide x 3.25 in deep
• Includes: Shaft Adapter
• Used With: Spyder and Stryker controllers
• Weight (lb): 1.2 lb
• Materials: Plastic housing
• Mounting: Direct Coupled
• Frequency: 50 Hz; 60 Hz
• Approvals, Underwriters Laboratories Inc.: UL873
• Electrical Connections: Ribbon with a push on 3-pin connector for Spyder and Stryker controllers
• Operating Humidity Range (% RH): 5 to 95% RH, non-condensing
• Supply Voltage: 24 Vac +20%, -15%; 24 Vdc
• Power Consumption: Driving-- 5 VA
• Shipping and Storage Temperature Range (F): -22 F to +176 F
• Ambient Temperature Range (F): -5 F to +122 F
• Maximum Noise Rating: Driving (dB(A) @ 1m)-- 35
• Stroke: 95 ±3 degrees
• Shaft Dimensions (in.): 1/4 to 1/2 in. square or 3/8 to 1/2 in. round
• ActuatorType: Damper
• Control Signal: Floating
• Fail Safe Mode: Non-Spring Return
• Torque Rating (lb-in.): 44 lb-in.
• Torque Rating (Nm): 5 Nm
• Additional Torque Ratings (lb-in.): Maximum Stall 70 lb-in.
• Additional Torque Ratings (Nm): Maximum Stall 8 Nm
• Rotation to Open: Up to 95 degrees
• Rotational Stroke Adjustment: Dual Integral Adjustable Stops
• Timing, Nominal: Driving @ 60 Hz, 90 sec
• Shaft Adapter Type: U-bolt clamp
• Manual operation: Declutch mechanism
