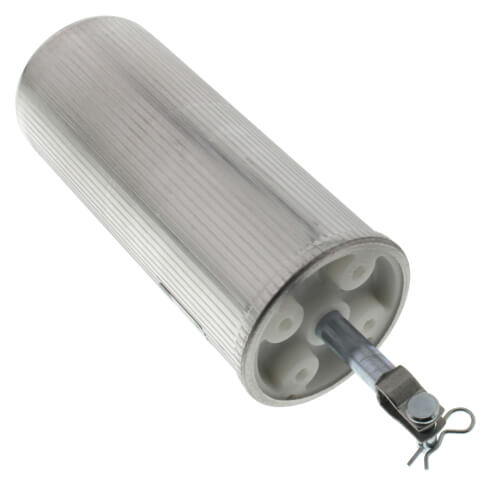

Low Force Damper Actuator, Pneumatic Proportional Control (5 to 10 psi)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
MP909D1474 has been discontinued
Discontinued November 23, 2023
This product was discontinued by the manufacturer.
MANUALS (1)
Direct Replacement:
Low Force Damper Actuator, Pneumatic Proportional Control (5 to 10 psi)
Product Highlights
–
50°F to 140°F
30 MAX PSI
Description
–
MP909D is used for pneumatic proportional control of variable volume terminal units and small dampers. Available in various operating ranges, for either individual or sequence operation with other actuators. Compatible with all competitors products.
Features:
Features:
- Rugged ribbed aluminum body.
- Low-friction shaft bearing.
- Close tolerance on operating range and stroke.
- Protected barb connector.
- Versatile mounting and connecting hardware options.
- Positive leakproof seal.
Specs
–
| Product Type: | Actuator |
|---|---|
| Actuator Type: | Pneumatic |
| Temperature Range (F): | 50°F to 140°F |
| Actuator Spring Range: | 5 to 10 psi |
| Fail Safe Mode: | Spring Return |
| Stroke: | 2.4" |
| Max Pressure (PSI): | 30 |
| Air Connections: | Barbed fitting for 1/4 in. O.D. tubing |
