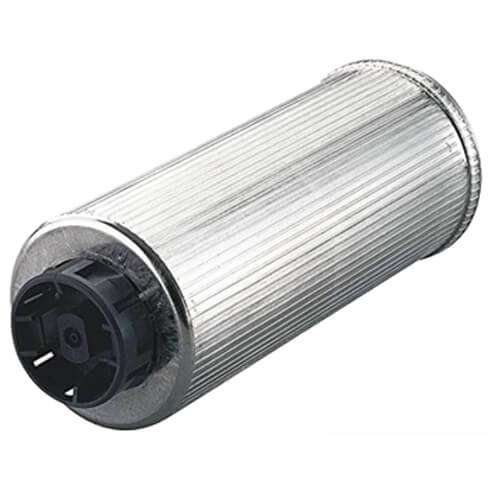

Medium Force Damper Actuator w/ Spring Return for Variable Volume Terminal Units (5 to 10 psi)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$391.34 each
In Stock
Get 2 Wed, Jul 8
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
-28°F to 160°F
30 MAX PSI
Description
–
These actuators are used for proportional control of variable volume terminal units, mixing boxes, and small to medium sized dampers. They are available in various operating ranges for either independent operation or sequence operation with other actuators. The MP909E has an optional adjustable stroke feature. The MP909H includes a positive positioner. Replacement devices are available for Johnson, Powers, Robertshaw, Barber-Colman, and older Honeywell actuator models.
Features
Features
- Rolling diaphragm operated.
- Low friction shaft bearing.
- Close tolerance on operating range and stroke.
- Non-overlapping spring ranges for sequencing.
- Corrosion resistant materials.
- Reliable long life.
Specs
–
| Air Connections: | 1/8" NPT Dual Barbed fitting for 5/32" or 1/4" O.D. tubing |
|---|---|
| Actuator Type: | Pneumatic |
| Temperature Range (F): | -28°F to 160°F |
| Actuator Spring Range: | 5 to 10 psi |
| Fail Safe Mode: | Spring Return |
| Stroke: | 4" |
| Max Pressure (PSI): | 30 |
| Features: | Includes External Mounting Bracket w/ Balljoint |
