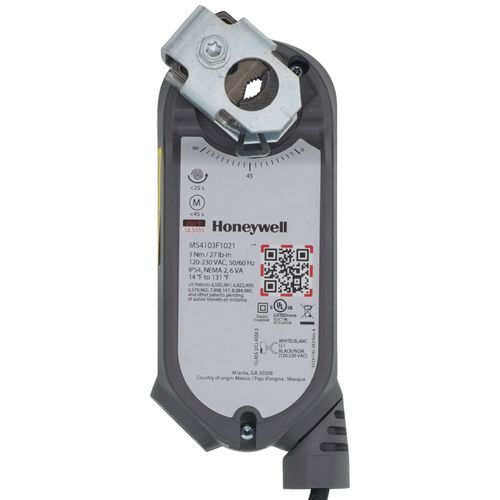

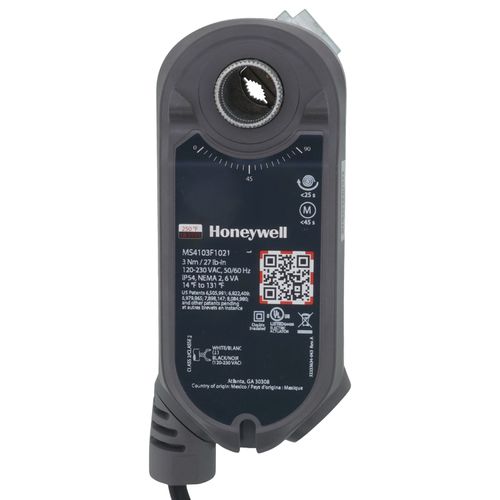

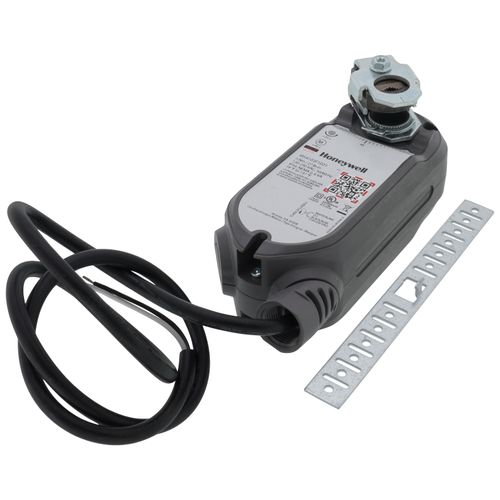

2 Pos./SPST SR 27 lb-in., 3 Nm, SCSA, Conduit, Fire/Smoke Damper Direct Coupled Actuator (120-230V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$293.59 each
In Stock
Get 3 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
120-230V
27 lb-in Torque
Direct Coupled
Description
–
Note: Image may not reflect actual product
2 Pos./SPST SR 27 lb-in., 3 Nm, SCSA, Conduit, Fire/Smoke Damper Direct Coupled Actuator (120-230V)
Features:
2 Pos./SPST SR 27 lb-in., 3 Nm, SCSA, Conduit, Fire/Smoke Damper Direct Coupled Actuator (120-230V)
Features:
- 30 lb-in. (3.4 N•m) or 80 lb-in. (9 N•m) minimum driving torque at 350°F (176°C)
- Reversible mounting facilitates use in either clockwise (cw) or counterclockwise (ccw) spring rotation
- Integral spring return ensures level of return torque
- Fifteen-second spring return timing
- No special cycling required during long-term holding
- No audible noise during holding
- Patent pending design eliminates need for limit switches to reduce power consumption
- Models available for 24, 120, and 230 Vac
- Ninety-five degree angle of rotation
- Actuator holds rated torque at reduced power level
- Die-cast aluminum housing
- Housing design allows flush mounting to damper
- Designed to operate reliably in smoke control systems requiring Underwriter’s Laboratories Inc. UL555S ratings up to 350°F
- Models available with SPST position-indicating switches (7°, 85° stroke)
Specs
–
| Product Type: | Actuator |
|---|---|
| Actuator Type: | Damper |
| Application: | HVAC |
| Torque: | 27 lb-in |
| Fail Safe Mode: | Spring Return |
| Control Signal: | Two position SPST |
| Voltage: | 120-230V |
| Mount: | Direct Coupled |
| Features: | NEMA 1 |
| Auxiliary Switch: | No Switch |
