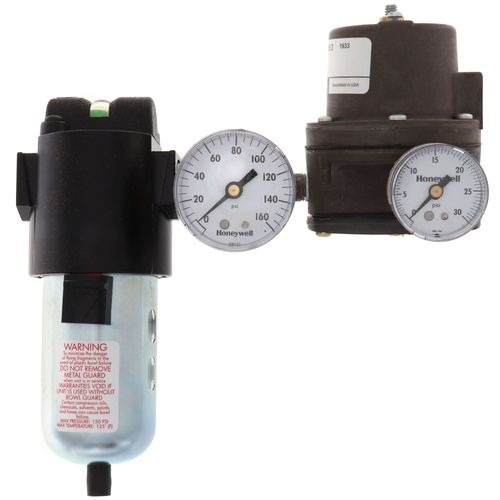

Pressure Reducing Valve for Dual Pressure Systems, w/ Sub-micron Filter Station, 2 PSI Gauges

Used to control the pressure of the air delivered to pneumatic control systems. Models available for single-pressure systems or two-pressure systems (Day/Night or Summer/Winter) requiring two independently regulated pressure settings. Dual-pressure units switch from the lower settings to the higher settings when main air is applied to the pilot port. Models also available including a sub-micron filter assembly and pressure gauges. Replacement devices are available for Johnson, Powers, Robertshaw, Barber-Colman and older Honeywell pressure reducing valves.

Features

• Built-in adjustable safety relief valve for limiting downstream pressure.
• For two-pressure models: Pressure changes accomplished with manual switch or automatically with electric pneumatic switch.
• Adjustable stops for desired settings.

Specifications

• Description: Pressure Reducing Valve for Dual Pressure Systems, consists of a PP901B Valve, a sub-micron filter station, 2 psi gages, Interconnecting Pipe Fittings, and a Mounting Bracket
• Application: Pressure Reducing
• Output Pressure Range (psi): primary pressure: adj.0 to 25 psi; secondary pressure: adj. 0 to 5 psi above primary rating
• Connection Size: Inlet and out air: 1/4 in. NPT (female)
• Mounting : Bracket furnished
• Dimensions (in): 11 in. high, 8-7/8 in. wide, 3-3/4 in. deep
• Includes: Submicron filter assembly and two psi gages.
• Inlet Pressure Range: 45 to 150 psi
