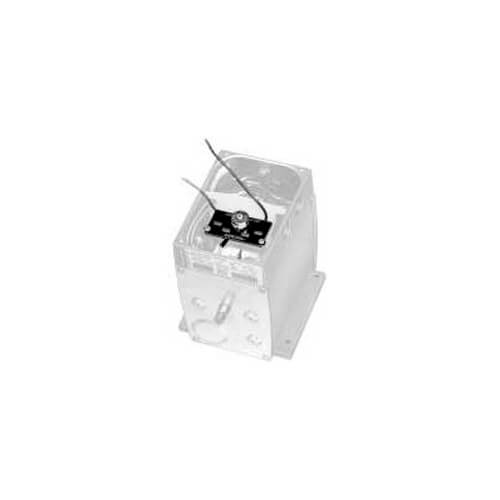

Q209A1022 has been discontinued
This product has been discontinued
MANUALS (1)
Product Highlights
–
Internal mount to Modutrol IV Motors
3-1/4"
3-3/8" Width
3-7/8" Depth
M9184, M9185, M6284, M6285
Description
–
Overview:
Used to limit minimum position of a proportioning Modutrol motor.
Features:
Mount directly in motor.
All wiring is accomplished within motor wiring compartment.
Color-coded leadwires.
Application Type: Electro-mechanical
Includes: 150 ohm Potentiometer, leadwires and bracket
Used to limit minimum position of a proportioning Modutrol motor.
Features:
Specs
–
| Product Type: | Potentiometer |
|---|---|
| Electric Connection: | Screw Terminals |
| Mount: | Internal mount to Modutrol IV Motors |
| Control Signal: | SPST On/Off Switch |
| Height: | 3-1/4" |
| Width (Inches): | 3-3/8" |
| Depth (Inches): | 3-7/8" |
| Used With: | M9184 M9185 M6284 M6285 |
