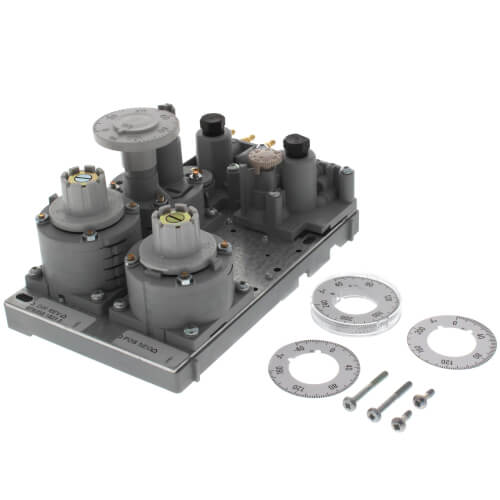

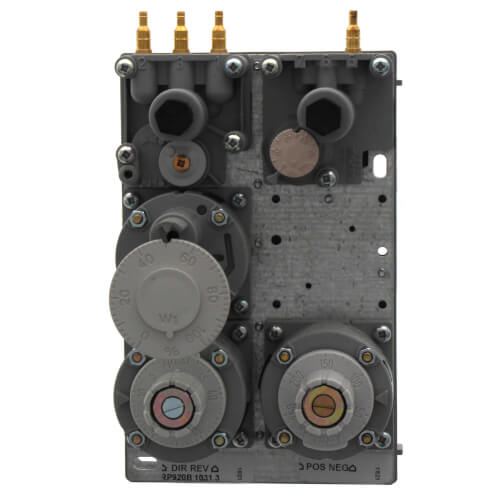

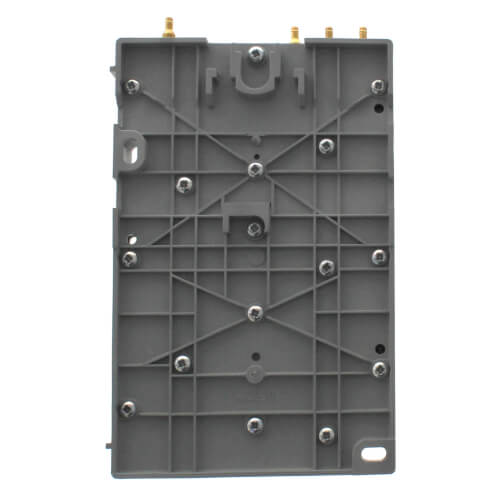

Dual Input Controller w/ Remote sensor

Proportional, high capacity, single or dual input pneumatic controller used in conjunction with remote sensors to provide proportional (P) or proportional plus integral (P+I) control of temperature, humidity, pressure, or dewpoint for heating and air conditioning systems. Replacement devices are available for Johnson, Powers, Robertshaw, Barber-Colman, and older Honeywell controllers.

Features

• Proportional plus integral control option minimizes offset.
• Miniature diaphragm technology provides high degree of accuracy and reliability.
• Direct Acting models can be converted to Reverse Acting (RA) function in field.
• Field adjustable compensation start point.
• Local or remote setpoint field option. Integral action cut-off provides trouble-free automatic startup.
• Transparent cover (optional) provides protection while allowing easy reading of settings and gages.
• Corrosion resistant construction.

Specifications

• Remote bulb sensor: No
• Action: Direct Acting
• Airflow Usage: 0.07 scfm (33.0 mL/s) with 1 psi (7kPa) pressure drop at 18 psi (124 kPa) main air supply
• Capacity: at 18 psi (124 kPa) MLP and 8.5 psi (59 kPa) BLP (does not include sensor usage): 0.021 scfm (10 mL/s)
• Maximum Safe Operating Pressure (psi): 30 psi
• Maximum Operating Temperature (F): 130F
• Remote Control Point Adjustment: no
• Operating Humidity Range (% RH): 5 to 95%
• Input Signal: 3 to 15 psi
• Output Pressure Range: 3 to 13 psi, output signal maximum is Mainline Pressure minus 1/2 psi
• Temperature Range (F): 40 F to 130 F
• All RP920s can be converted to reverse acting in the field. For additional technical information see literature Form no. 85-0224 and 95-7392EF.
• Maximum Safe Mainline Pressure (psi): 30 psi
• Mainline Pressure Range (psi): 17 to 21 psi
