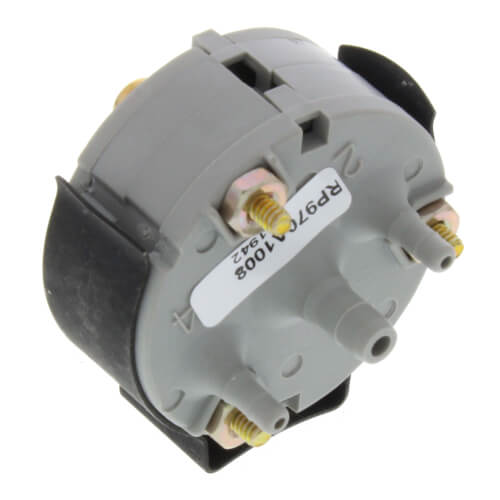

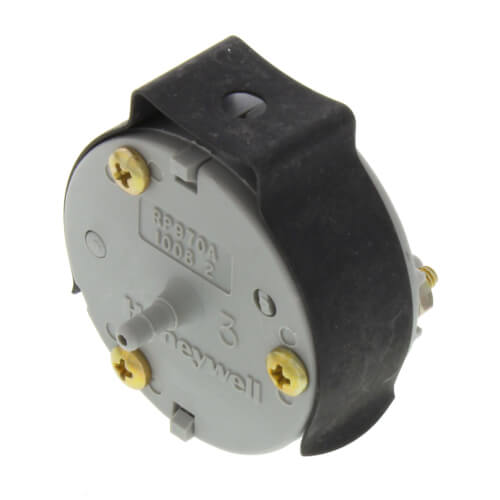

Pneumatic Capacity Relay

Direct acting, modulating relay provides increased capacity of the branchline pressure to the final control device. Replacement devices are available for Johnson, Powers, Robertshaw, Barber-Colman, and older Honeywell devices.

Features

• In-line, wall, or panel mounted.
• Sharp-barb air connections.
• Molded plastic construction with neoprene diaphragms.
• Mounting clip provided.

Specifications

• Description: Wall, In-Line or panel mounted Pneumatic Capacity Relay
• Type: Pneumatic Capacity Relay
• Action: Direct Acting
• Operation: Provides increased capacity of branchline pressure to final control device
• Airflow Usage: 0.002 scfm (1.0 mL/s) maximum
• Air Connections: Barb fittings, Port 1: 1/4 in. (6 mm) O.D. plastic tubing; Other Ports: 5/32 in. (4 mm) O.D. plastic tubing
• Capacity: 0.039 scfm at 1 psi differential (18 mL/s at 5 kPa differential)
• Mounting: Wall or In-line or panel
• Maximum Safe Operating Pressure (psi): 30 psi
• Operating Humidity Range (% RH): 5 to 95% RH
• Temperature Range: 0 F to 140 F
• Includes: 14003030-001, 1 1/2 in. Mounting Clip for Mounting relay to wall or panel
• Input Operating Pressure (psi): 0 to 20 psi
