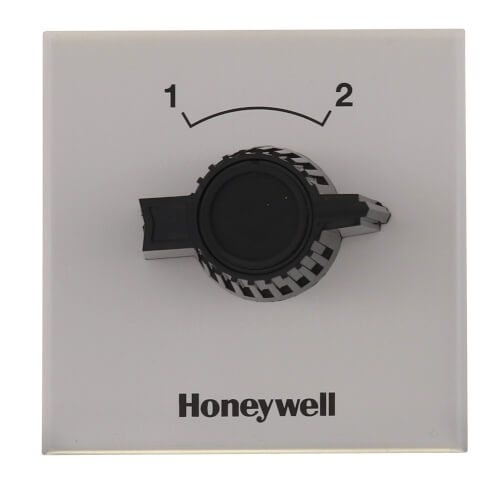

4 port Manual Pneumatic Switch w/ 2 position interchange
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$215.23 each
In Stock
Get 2 Tue, Jun 16
Order by today, receive Tuesday
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Description
–
Pneumatic diverting switch used to manually divert, block, or bleed air in pneumatic air lines to revise control sequence with a change in conditions. Commonly applied on Day-Night, Summer-Winter, On-Off-Auto, or Start-Stop functions. Replacement kits are available for Johnson, Powers, Robertshaw, Barber-Colman, and older Honeywell switches.
Features
Specifications
Features
- Available in two-position or three-position devices.
- Mountable on a panel up to 7/16 in. (11 mm) thick.
- Complete with knob and scaleplate.
Specifications
- Switch Type: Two or Three Position Pneumatic Diverting Switch
- Switch Operation: Used to manually divert, block or bleed pneumatic air lines
- Airflow Usage: 0.175 scfm (82.6 mL/s) minimum at 1 psi pressure drop
- Air Connections: Barb fitting for 5/32 in. (4 mm) O.D. plastic tubing
- Maximum Safe Operating Pressure (psi): 30 psi
- Mounting: Panel mount
- Operating Humidity Range: 5 to 95% RH
- Temperature Range: 20 F to 140 F
- Dimensions: 1 5/8 in. high x 1 9/16 in. wide x 3 in. deep
Specs
–
| Product Type: | Pneumatic Switch |
|---|
