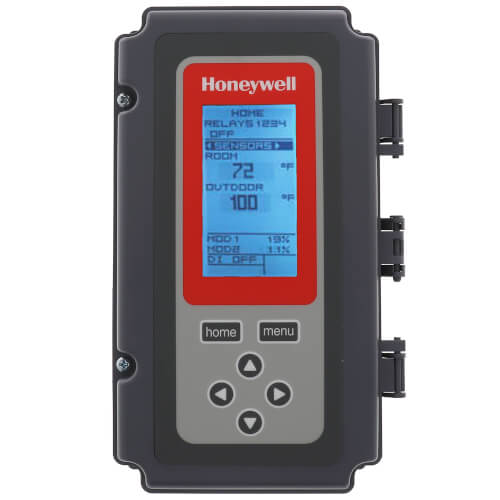

Electronic Temp Controller w/ 2 Temp Inputs, 4 SPDT Relays, 2 Analog Outputs
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$649.44 each
In Stock
Get 10 Tomorrow, Jul 8
Order by 6PM, receive Tomorrow
MANUALS (3)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
24V, 240v, 120v
248°F Max Temp
-40°F Min Temp
8.15625" Height
4-13/32" Width
2-15/16" Depth
Description
–
The T775 electronic remote temperature controllers are the next generation of commercial and agricultural controls capable of remote sensing of temperature and providing switched and/or proportional outputs to various types of loads.
Features
Features
- Save time on installations with the easy-to-use graphical Interface, large display, and the intuitive programming.
- Use the time clock scheduler or digital input to control the setback and disable output options to help save energy
- Protect equipment from freezing or overheating on models with the modulating high or low limit control option
- Get pinpoint control on modulating outputs by setting the integral and derivative times (PI or PID)
- Configure models with reset in a few easy steps
- Control floating actuators with floating outputs on select models
- Eliminate the need for a separate time delay device and protect equipment with the minimum off time option
- Sensor 5002159-001 included with non-NEMA 4X models
- Sensor T775-SENS-WR included with NEMA-4X models
- Application: On/off or analog controller for applications where electronic accuracy and remote sensing of temperature is required.
- Type: Modulating-NEMA 1
- Analog Outputs: 2
- Relay Outputs: 4 SPDT
- Sensor Inputs : 2
- Voltage: 24 Vac or 120/240 Vac
- Frequency: 60 Hz
- Frequency: 50 Hz
- Relay Contact Ratings (24 Vac): 10.0A resistive
- Relay Contact Ratings (120 Vac):1/2 hp; 9.8 AFL, 58.8 ALR, 125 VA Pilot Duty
- Relay Contact Ratings (240 Vac): 1/2 hp; 4.9 AFL, 29.4 ALR, 125 VA Pilot Duty
- Dimensions (in.): 8 5/32 in. high x 4 13/32 in. wide x 2 15/16 in. deep
- Sensor Element: 1097 ohms PTC at 77 F (25 C)
- Number of Sensor Inputs: 2
- Sensors Included: T775-SENS-WR (1)
- Maximum distance to sensor (ft): Up to 1,000 ft
- Setpoint Temperature Range (F): -40 F to 248 F
- Accuracy (F): ±1 F at 77 F
- Differential Temperature (F): 1 F to 150 F
- Operating Ambient Temperature Range (F): -40 F to 140 F @ 60 Hz
- Replaces: T775E1114, T775F1022, T775F1055, T775F1089
Specs
–
| Application: | Electronic Remote Temperature |
|---|---|
| Type: | Modulating |
| Output: | 4 SPDT Relay (2) Analog |
| Sensor Inputs: | 2 |
| Voltage: | 24V 240v 120v |
| Hertz: | 60 50 |
| Contact Ratings 24v: | 10.0 A Resistive |
| Contact Ratings 120v: | 1/2 hp 125 VA Pilot Duty 9.8 AFL 58.8 ALR |
| Contact Ratings 240v: | 125 VA Pilot Duty 4.9 AFL 29.4 ALR 1/2 hp |
| Height (Inches): | 8.15625" |
| Width (Inches): | 4-13/32" |
| Depth (Inches): | 2-15/16" |
| Sensor Type: | 1097 ohm @ 77 F PTC 50021579-001 |
| Max Dist To Sensor: | Up to 1000 ft |
| Bulb Size: | 1/4" x 2" |
| Max Temp (F): | 248°F |
| Min Temp (F): | -40°F |
| Temperature Range (F): | -40°F to 248°F |
| Accuracy: | +/-1° at 77°F |
| Throttling Range: | 1°F to 150°F |
| Ambient Operating Temperature: | -40°F to 125°F @ 50 Hz -40°F to 140°F @ 60 Hz |
| Features: | High/Low Mod Limit NEMA-1 Enclosure |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
1 Replacement Part
1097 Ohm Standard Temperature Sensor
SKU: 50021579-001
Honeywell
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
5 out of 3 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Customer Images
Showing 1-3 of 3 reviews
Temp controller
I have purchased several of these controllers. Work great and simple setup. Just purchase the correct one for you application.
Mwalt
Los Angeles
2 years ago
Verified Buyer
Was this review helpful to you?
Grand stand alone
This purchase was really a back-up for our current T775M - We run our entire HVAC plant - Besides triggering all heating and cooling systems - we use all mods and relays. The MODs/PIDs run our tower fan and the boiler/heat exchanger mixing valve just perfectly. The relays trigger the heating controls - including a T775P2003 boiler control and a t775e, the tower sump, and two bypass circuits. We have used T775s for 20 years without a failure.
I have nothing negative to report.
garyvp
Brooklyn
10 years ago
Verified Buyer
Was this review helpful to you?
The most versatile controller
I've used these controllers to perform several different functions and they have proven to me to be the easiest and most versatile controller I've used and I've been doing HVAC for 35 years.
Space temp, discharge air, pressure, humidity, reset, multiple sensor inputs, multiple analog and digital outputs, - it does it all with idiot-proof programming. Built in time clock also.
What's not to like?
Madhvacman
Gaithersburg, MD
13 years ago
Verified Buyer
Was this review helpful to you?
