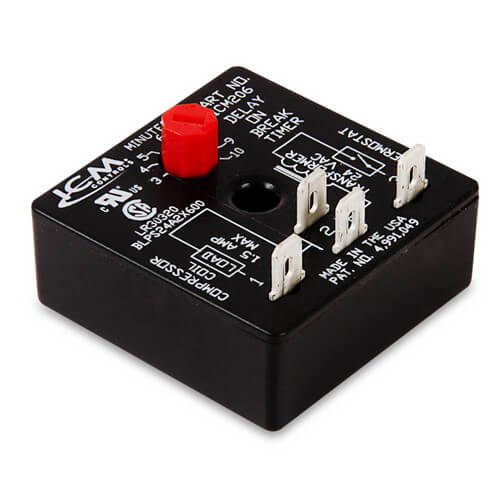

ICM206 Delay on Break Timer (3-10 Minute Adjustable Delay)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
ICM206 has been discontinued
Discontinued September 26, 2019
This product was discontinued because the part number was changed by the manufacturer. No modifications were made to the replacement product.
MANUALS (1)
Direct Replacement:
ICM206 Delay on Break Timer (3-10 Minute Adjustable Delay)
Product Highlights
–
18/30 VAC
1.5 Amps
2" x 2"
Description
–
Delay on Break Timers ("anti-short cycle", "ON delay on break") helps to protect air conditioning, refrigeration and heat pump equipment from damage which may be caused by the rapid short cycling of compressors.
Features
Mode of Operation - Upon application power, the load is energized. When the thermostat or other switch opens or there is a loss of power, the load is de-energized and the delay period begins. The compressor will not start again during the delay period. Restart occurs after the delay period has elapsed.
Features
- Brownout protection
- UL 873 recognition as compressor controller
- Helps prevent scroll compressor reversal
- 3-10 minute adjustable time delay
- Fast response time: 16ms
- Prevents low voltage starts
- Eliminates relay chatter due to thermostat bounce or tampering
- Works with anticipator-type thermostats Patented: US Parent No. 4,991,049
Mode of Operation - Upon application power, the load is energized. When the thermostat or other switch opens or there is a loss of power, the load is de-energized and the delay period begins. The compressor will not start again during the delay period. Restart occurs after the delay period has elapsed.
Specs
–
| Product Type: | Delay on Break |
|---|---|
| Time Delay: | 3-10 Min Adjustable |
| Voltage: | 18/30 VAC |
| Amperage: | 1.5 |
| Amp Inrush: | 15 |
| Frequency: | 50-60 Hz |
| Holding Current: | 40 mA (minimum) |
| Size: | 2" x 2" |
