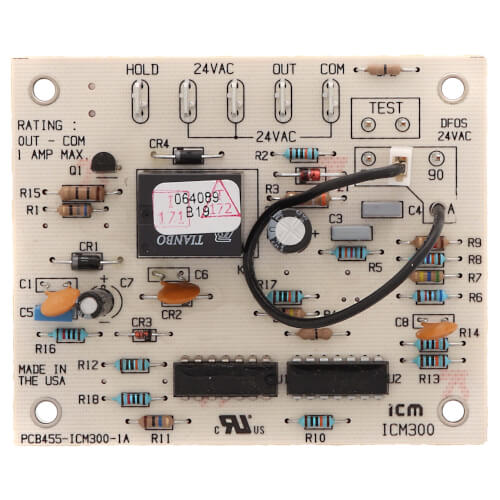

Main product image of ICM300 Heat Pump Defrost Timer

Hover image to zoom

ICM300 Heat Pump Defrost Timer

Name: ICM300 Heat Pump Defrost Timer
Brand: ICM Controls
SKU: ICM300C
Price: 39.12 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

Brand:

ICM Controls

SKU:

ICM300C

Rating:

(1)

Q&A:

(0)

Hover image to zoom

ICM300C has been discontinued

Discontinued December 21, 2022

This product was discontinued by the manufacturer.

This item replaces: P284-2590, ICM300

Product Highlights

–

18/30 VAC

Description

–

Features

Direct replacement for OEM Type 621 controls
Ultra low cost, time and temperature defrost
HOLD input tracks compressor run times
Time and temperature terminate
10-minute fixed defrost time
Pin-selectable intervals: 30/60/90 minutes
Test pins reduce test time by 256x
Stable pin post construction
High installed base
Must have external relays for fan, reversing valve and auxiliary heat

Specs

–

Voltage:	18/30 VAC
Frequency:	50-60 Hz
Power Consumption:	1 watt maximum
- Type:	Relay
Form:	SPST, N.O.
- Rating:	1 amp
Defrost Time:	Fixed 10 minutes (+/-5%)
Power on Reset Time:	500ms
Interval Time b/w Defrosts:	Pin-selectable 30/60/90 min
Replaces:	3030A374 C64301-1 621-10 621-1 33G9501 621-110 1395-329 90-621 621-310-110 840-4-5548 10321-00 26E-10 B12260-06 621-111 TD-10 DT2-1000 47-21776-01 90-621 C64310-1
OEM:	Therm-O-Disc Goodman MARS Rheem White-Rodgers Heil Quaker Honeywell Essex Steveco Weatherking Coleman Snyder General Amana Intertherm Lennox Robertshaw/Uni-Line ICP Artesian Arcoaire
