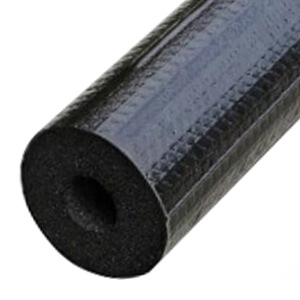

1-3/8" Pipe (O.D.) x 3/4" Wall Titan Pipe Insulation, 6'

K-FLEX TITAN is a flexible coextruded jacketed composite material that can be applied to either K-FLEX NBR/PVC or EPDM (TITAN HT) tubular insulation. It is a polymeric jacketed material that offers excellent flexibility, abrasion and weather resistance, making it ideal for outdoor applications. K-FLEX TITAN can be used for outdoor applications with service temperatures ranging from -70 °F to +300 °F. The applications would be consistent with those recommended for K-FLEX Insul-Tube or K-FLEX HT tubing. The product is used to enhance the weather and abuse resistance of the insulation tubing. K-FLEX TITAN is ideal for use on HVAC linesets and flex hose applications. K-FLEX TITAN HT (EPDM) is ideal for use on heat pumps and solar hot water heating where higher service temperatures are expected (300 °F). K-FLEX TITAN provides excellent UV resistance and protection from weather. K-FLEX TITAN’s proprietary copolymer blend jacket provides excellent protection from mechanical abuse, including incidental impact from lawn equipment such as weed wackers (plastic string type).

Specifications:

• Insulation Nominal O.D.: 1-3/8"
• Composition: Flame-retarded EPDM elastomeric foam with polyethylene film jacket
• Temperature Range: -70°F to 220°F (-56.6°C to 104.4°C)
• UV Resistant: Yes
• Wall Thickness: 3/4"
• Length: 76"
• Height: 11"
• Width: 16"
• R Value: R5.3
