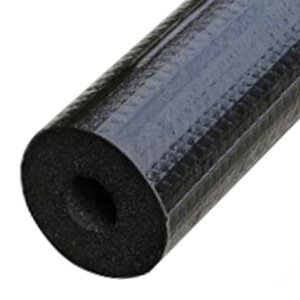

1-1/8" Pipe (O.D.) x 1/2" Wall Titan Pipe Insulation, 6'
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$14.00 each
BOX UP & SAVE 8%
$334.88 box of 26
$12.88 each
In Stock
Get 1,078 Tue, Jul 29
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
1/2"
3" Width
3"
72" Length
Description
–
K-FLEX TITAN is a flexible coextruded jacketed composite material that can be applied to either K-FLEX NBR/PVC or EPDM (TITAN HT) tubular insulation. It is a polymeric jacketed material that offers excellent flexibility, abrasion and weather resistance, making it ideal for outdoor applications. K-FLEX TITAN can be used for outdoor applications with service temperatures ranging from -70 °F to +300 °F. The applications would be consistent with those recommended for K-FLEX Insul-Tube or K-FLEX HT tubing. The product is used to enhance the weather and abuse resistance of the insulation tubing. K-FLEX TITAN is ideal for use on HVAC linesets and flex hose applications. K-FLEX TITAN HT (EPDM) is ideal for use on heat pumps and solar hot water heating where higher service temperatures are expected (300 °F). K-FLEX TITAN provides excellent UV resistance and protection from weather. K-FLEX TITAN’s proprietary copolymer blend jacket provides excellent protection from mechanical abuse, including incidental impact from lawn equipment such as weed wackers (plastic string type).
Specifications:
Specifications:
- Copper Tubing O.D.: 1-1/8"
- Composition: Flame-retarded EPDM elastomeric foam with polyethylene film jacket
- Flammability: 25/50 (up to 1”)
- Temperature Range: -70°F to 220°F (-56.6°C to 104.4°C)
- UV Resistant: Yes
- Wall Thickness: 1/2"
- Density: 3-6 lb/ft3
- Length: 72"
- Height: 3"
- Width: 3"
- R Value: R3.1
Specs
–
| Application: | 1" Pipe |
|---|---|
| Wall Thickness: | 1/2" |
| Width (Inches): | 3" |
| Height: | 3" |
| Length (Inches): | 72" |
| R-Value: | 3.1 |
| Features: | UV Resistant |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.75 out of 4 reviews
100% would recommend this product
5 star
75%
4 star
25%
3 star
0%
2 star
0%
1 star
0%
Showing 1-4 of 4 reviews
Works as I hoped.
I actually used this for padding for my rc stantion so it doesn't mar the tail of my planes. Works as I hoped it would.
B. Martin
Veedersburg, Indiana
1 years ago
Verified Buyer
Was this review helpful to you?
Yes
In this crazy, lazy, wokeness, CRT, DEI Culture. It's refreshing that the 'Supply House' Representative was well informed, polite and knowledgeable about products I purchased. They delevered my product in a timely manner as they stated. Thank you Supply House Personnel!
Lefty
Fredericksburg, Tx
1 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Good stuff, OK joining pieces together
Excellent insulation but requires Titan Tape to join pieces together. I did some successful joints with 3M seaming tape, and 3M adhesion promoter. The thick skin is polyolefin so not much sticks to it hence the need for the right stuff to stick it together. Any stress on the joint and it will separate too so you should avoid tension on the whole length of the joined pieces.
Arioda
Pac NW
2 years ago
Verified Buyer
Was this review helpful to you?
Rugged, needs special tape
This really is the only pipe insulation you should ever buy with an important caveat. You must also get the special tape to join it to other lengths of it. The tape SKU is 800-TAPE-TITAN-2. The outer jacket of this insulation is thick polyolefin rubber and very resistant to tearing as well as UV resistant making it perfect for line sets, and in my case for pulling the insulation through holes in floor joists. My application runs pairs of PEX pipe in the insulation from manifolds to low temp radiators. I slide lengths of insulation over the PEX and joint them together. In my first attempt, I used a 3M adhesion promoter with some of their special acrylic seaming tape which kind of works though polyolefin is notoriously hard to reliably join. I got the TITAN tape in time to do the rest of the job and it is head and shoulders better. It's glass reinforced, very flexible and sticks like crazy. The combo should be excellent for linesets run through joists too.
Arioda
98368
3 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: Is the Pipe OD shown for K-Flex Titan insulation the actual pipe/tubing OD (and therefore the insulation ID) or does it refer to a nominal pipe size? If I add the Pipe OD plus 2x the insulation thickness, I get much less than the insulation OD shown in your product listings.
Asked by David 2 years ago
Add your answer
Verified Reply- SupplyHouse StaffHi David, thanks for writing in. This is for 1-1/8" pipe OD, aka 1" nominal CTS pipe.
Was this review helpful to you?
