Description
–

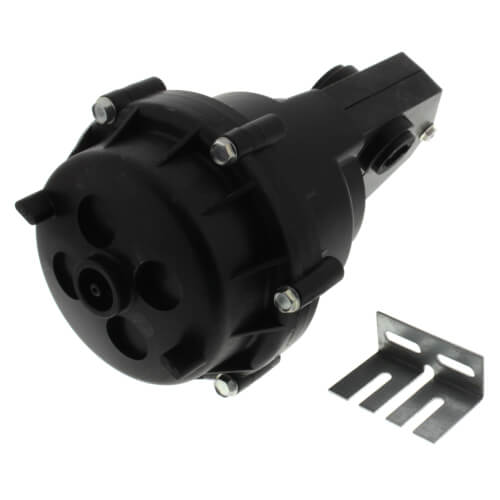

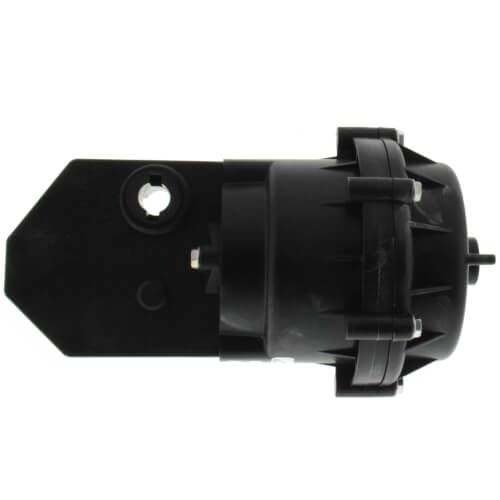

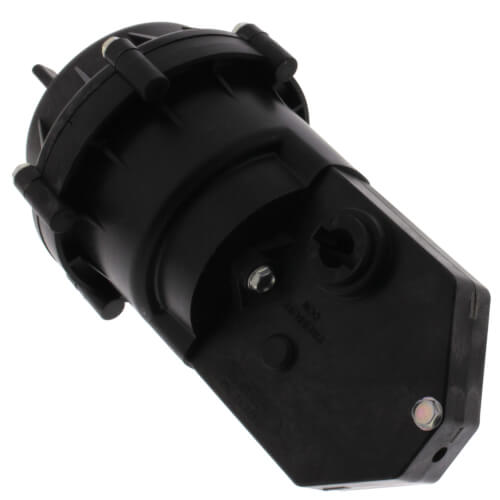

Pneumatic Rotary Actuator, 8-13 PSI with 1/2" Shaft
These pneumatic rotary actuators are designed for use on VAV terminal units and other small dampers in HVAC systems.
Models ending in “000” will mount to 1/2-inch diameter damper shafts or (using the HLO-1011 shaft adapter) to 3/8-inch diameter shafts. Models ending with a “001” will mount to 3/8-inch square damper shafts.
Actuators may be mounted with either side toward the damper to allow clockwise or counterclockwise rotation. A non-rotation bracket is supplied with each actuator and a variety of options are available to lock the actuator’s drive hub to the damper shaft.
Features:
These pneumatic rotary actuators are designed for use on VAV terminal units and other small dampers in HVAC systems.
Models ending in “000” will mount to 1/2-inch diameter damper shafts or (using the HLO-1011 shaft adapter) to 3/8-inch diameter shafts. Models ending with a “001” will mount to 3/8-inch square damper shafts.
Actuators may be mounted with either side toward the damper to allow clockwise or counterclockwise rotation. A non-rotation bracket is supplied with each actuator and a variety of options are available to lock the actuator’s drive hub to the damper shaft.
Features:
- Mounts on 1/2-inch and 3/8-inch round or 3/8-inch square shafts.
- Units can rotate clockwise or counterclockwise
- Variety of options for securing the hub and damper shaft
Specs
–
| Product Type: | Pneumatic Actuator |
|---|---|
| Type: | Rotary |
| PSI Range: | 8-13 PSI |
| Supply Pressure: | 0-20 PSI |
| Shaft Diameter: | 1/2" |
