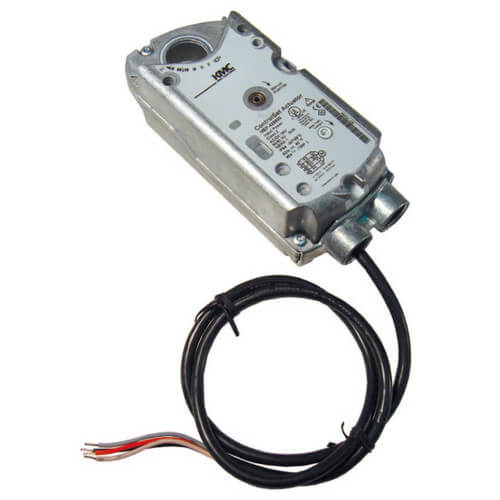

Direct-Coupled Spring-Return Fail-Safe Actuator, 0-10 VDC with Feedback (62 in-lb)

Direct-Coupled Spring-Return Fail-Safe Actuator, 0-10 VDC with Feedback (62 in-lb)

KMC MEP-425 series direct-coupled, spring-return actuators are designed to control small- and medium-sized dampers requiring fail-safe operation.

The MEP-425 Series actuators mount to 1/4" to 3/4" diameter shafts or 1/4" to 1/2" square shafts. The actuators produce 62 in-lb. of torque, running and spring return minimum, over a maximum 95° rotation.

Two-position, tri-state, and 0 to 10 VDC models are available with pre-cabled wiring and integrated conduit adapter.

Features:

• Spring-return fail safe
• Two-position, tri-state, and 0-to-10 VDC models
• Direct mounting to common shaft sizes
• Integrated conduit adapter
• Pre-cabled three-foot wiring

Note: Image may not be actual representation of item.
