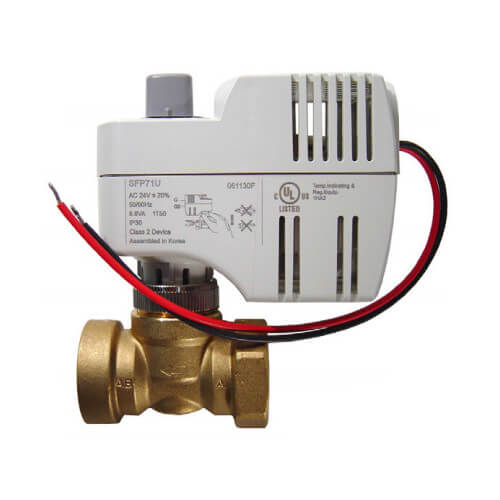

3/4" Two-Way Globe Zone Control Valve with Normally Open, Spring Return Actuator, 24 VAC (4.1 Cv)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$144.35 each
In Stock
Get 1 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
2-Way
FNPT x FNPT Connection
4.1 Cv
Normally Open
3/4" Connection
Description
–
3/4" Two-Way Globe Zone Control Valve with Normally Open, Spring Return Actuator, 24 VAC (4.1 Cv)
These globe zone control valves are designed to regulate the flow of hot or chilled water to such applications as VAV terminal unit reheat coils, fan coil units, and induction units. The compact design of these units allows easy installation within small enclosures.
Valve bodies, available in 1/2 to 1" line sizes, are all normally open. The actuator determines the fail position. Actuators have position indication and manual override. Replacement actuators can be installed on the valve bodies without tools.
Features:
These globe zone control valves are designed to regulate the flow of hot or chilled water to such applications as VAV terminal unit reheat coils, fan coil units, and induction units. The compact design of these units allows easy installation within small enclosures.
Valve bodies, available in 1/2 to 1" line sizes, are all normally open. The actuator determines the fail position. Actuators have position indication and manual override. Replacement actuators can be installed on the valve bodies without tools.
Features:
- Choice of tri-state/floating or proportional fail-inplace or two-position (NO or NC) spring-return fail-safe
- Compact size
- Spring-return fail-safe actuators feature easy manual override, visual position indication, UL listing for plenum installations, and heat-resistant lead wires
- Non-fail-safe actuators feature manual override (with 3 mm hex wrench), visual position indication, and are CE compliant and UL listed
Specs
–
| Product Type: | Globe Valve |
|---|---|
| Type: | Diverting |
| Position: | Normally Open |
| Fail Safe Mode: | Spring Return |
| Flow Capacity (Cv): | 4.1 |
| Connection Size: | 3/4" |
| Connection Type: | FNPT x FNPT |
| Body Pattern: | 2-Way |
| Operating Temp Range: | 41° to 122°F |
| Max Close-Off PSI: | 44 psi |
| Max Inlet Pressure: | 125 PSI |
