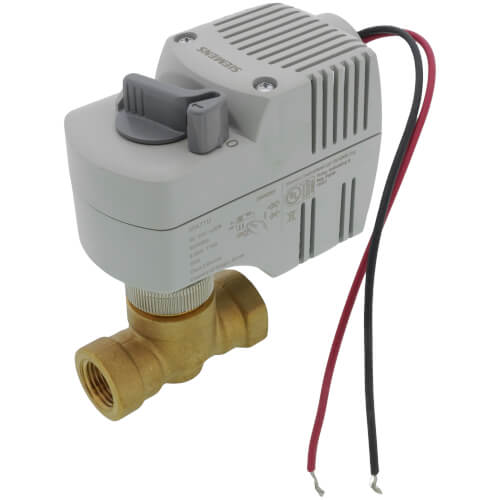

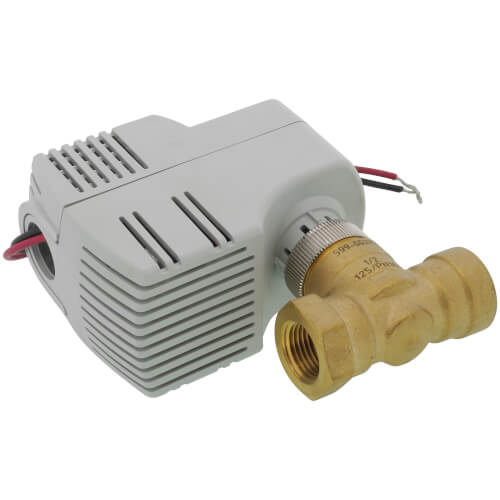

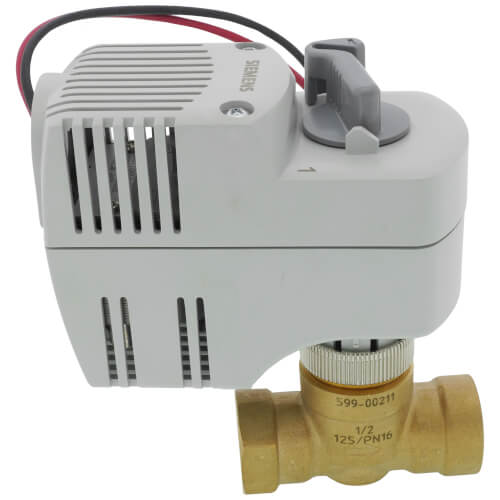

1/2" Two-Way Globe Zone Control Valve with NC, Spring-Return Actuator (2.5 Cv)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$145.39 each
In Stock
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
2-Way
FNPT x FNPT Connection
2.5 Cv
1/2" Connection
Description
–
These globe zone control valves are designed to
regulate the flow of hot or chilled water to such
applications as VAV terminal unit reheat coils, fan
coil units, and induction units. The compact design
of these units allows easy installation within small
enclosures.
Valve bodies, available in 1/2 to 1" line sizes, are all normally open. The actuator determines the fail position. Actuators have position indication and manual override. Replacement actuators can be installed on the valve bodies without tools.
Specifications
Valve bodies, available in 1/2 to 1" line sizes, are all normally open. The actuator determines the fail position. Actuators have position indication and manual override. Replacement actuators can be installed on the valve bodies without tools.
Specifications
- Actuator Type: Electric
- CV: 2.5
- Control Input: 24 VAC
- Fail-Safe: Yes
- Fail-Safe Type: Spring
- Input Types: Two-position
- Normality (Fail): NC
- Power Supply: 24 VAC
- Selection Guide: Valve And Actuator
- Timing (sec): 35
- Valve Connection: Female NPT
- Valve Piping Style: 2W
- Valve Size: 1/2"
- Valve Type: Zone
Specs
–
| Product Type: | Valve |
|---|---|
| Type: | Zone Control |
| Actuator Type: | Electric |
| Flow Capacity (Cv): | 2.5 |
| Connection Size: | 1/2" |
| Body Pattern: | 2-Way |
| Connection Type: | FNPT x FNPT |
