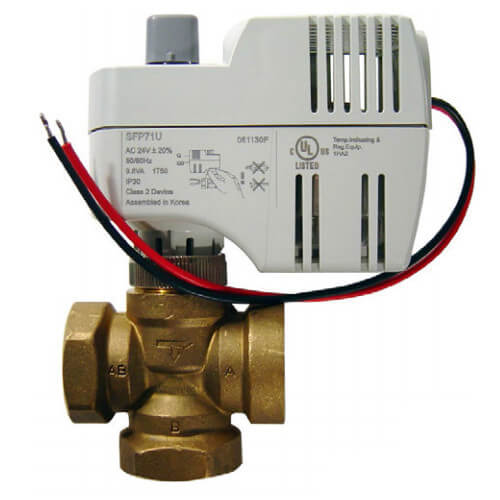

3/4" Three-Way Globe Zone Control Valve with Fail AB-B, 2-Position Actuator, 24 VAC (4.1 Cv)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$172.32 each
In Stock
Get 2 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
3-Way
FNPT x FNPT Connection
4.1 Cv
3/4" Connection
Description
–
3/4" Three-Way Globe Zone Control Valve with Fail AB-B, 2-Position Actuator, 24 VAC (4.1 Cv)
These three-way, diverting, globe zone valves are available in 1/2" through 1" line sizes. They are designed to regulate hot or chilled water in VAV terminal unit reheat coils, fan coil units, and induction units. For limited pressures, the valves can also be used in mixing applications. The compact size allows easy installation in small enclosures.
The actuator determines the fail position. Actuators have position indication and manual override. Replacement actuators can be installed on the valve bodies without tools
Features:
These three-way, diverting, globe zone valves are available in 1/2" through 1" line sizes. They are designed to regulate hot or chilled water in VAV terminal unit reheat coils, fan coil units, and induction units. For limited pressures, the valves can also be used in mixing applications. The compact size allows easy installation in small enclosures.
The actuator determines the fail position. Actuators have position indication and manual override. Replacement actuators can be installed on the valve bodies without tools
Features:
- Choice of tri-state/floating or proportional fail-inplace or two-position (NO or NC) spring-return fail-safe
- Compact size
- Spring-return actuators feature easy manual override, visual position indication, UL listing for plenum installations, and heat-resistant lead wires
- Non-fail-safe actuators feature manual override (with 3 mm hex wrench), visual position indication, and are CE compliant and UL listed
Specs
–
| Product Type: | Globe Valve |
|---|---|
| Type: | Diverting Zone Control |
| Actuator Type: | 2-Position |
| Fail Safe Mode: | AB-B |
| Flow Capacity (Cv): | 4.1 |
| Connection Size: | 3/4" |
| Connection Type: | FNPT x FNPT |
| Body Pattern: | 3-Way |
| Operating Temp Range: | 41° to 122°F |
| Max Close-Off PSI: | 44 psi |
| Max Inlet Pressure: | 125 PSI |
