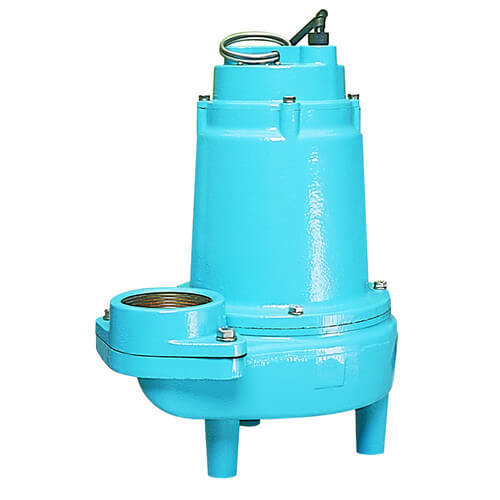

16S-CIM 1 HP, 160 GPM, 230V - Manual Submersible Sewage Ejector Pump, 40ft power cord
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,264.22 each
In Stock
Get 3 Wed, Jul 8 - Fri, Jul 10
MANUALS (2)
Lift Gate
–
This product weighs 92 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
230V
180 GPM
1 HP
40'
3"
1900 Watts
Description
–
The Eliminator« submersible pump seriees from Little Giant is specifically engineered to handle the tough, demanding tasks of effluent and sewage waste transfer with high efficiency and long term dependability. For use in residential, commercial, industrial and agricultural applications with light to medium transfer demands. Applications include dewatering, effluent waste, wastewater and sewage handling where such materials must be moved upward from a collection area to sewer or septic lines, or drainage areas.
- Handle liquids with 2" solids.
- Cast iron pump housing, impeller and volute with protective epoxy coating for corrosion and rust resistance.
- Oil filled motor housing for lifetime mechanical seal and bearing lubrication and efficient heat dissipation.
- Stainless steel screws, bolts, handle and seal assembly.
- Mechanical-type seal (stainless steel spring, nitrile parts, carbon and ceramic faces) with secondary exclusion seal.
- 1 HP, ball bearing motor.
- Permanent split capacitor design on single phase model.
- Capacitor and power cord connections isolated from oil filled motor housing for ease of field maintenance.
- Dynamically balanced two-vane non-clog impeller with pump-out vanes to keep solids away from seal for less seal and bearing wear.
- 3" Discharge
Specs
–
| Shutoff Head (ft.): | 35' |
|---|---|
| Cord Length: | 40' |
| Type: | Manual |
| Horse Power: | 1 |
| Application: | Effluent Sewage Waste Transfer Sewage |
| Wattage: | 1900 |
| Amperage: | 11 |
| Flow at 5 FT Head: | 180 GPM |
| Flow at 10 FT Head: | 160 GPM |
| Flow at 15 FT Head: | 130 GPM |
| Approvals: | UL/CSA |
| Weight (lbs): | 94 lbs |
| Dimensions: | 17.2"H x 14.1"L x 9.9"W |
| Discharge: | 3" |
| Solids Size: | 2" |
| Max Pressure (PSI): | 15.1 |
| Voltage: | 230V |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
5 out of 4 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Customer Images
Showing 1-4 of 4 reviews
Manual Sbmersible Pump
We needed a pump for our pond when our current pump stopped working. The ordering process was very easy and the pump was delivered on time. If we need anything else from this company we certainly us them again.
AT
Houston, TX
2 years ago
Verified Buyer
Was this review helpful to you?

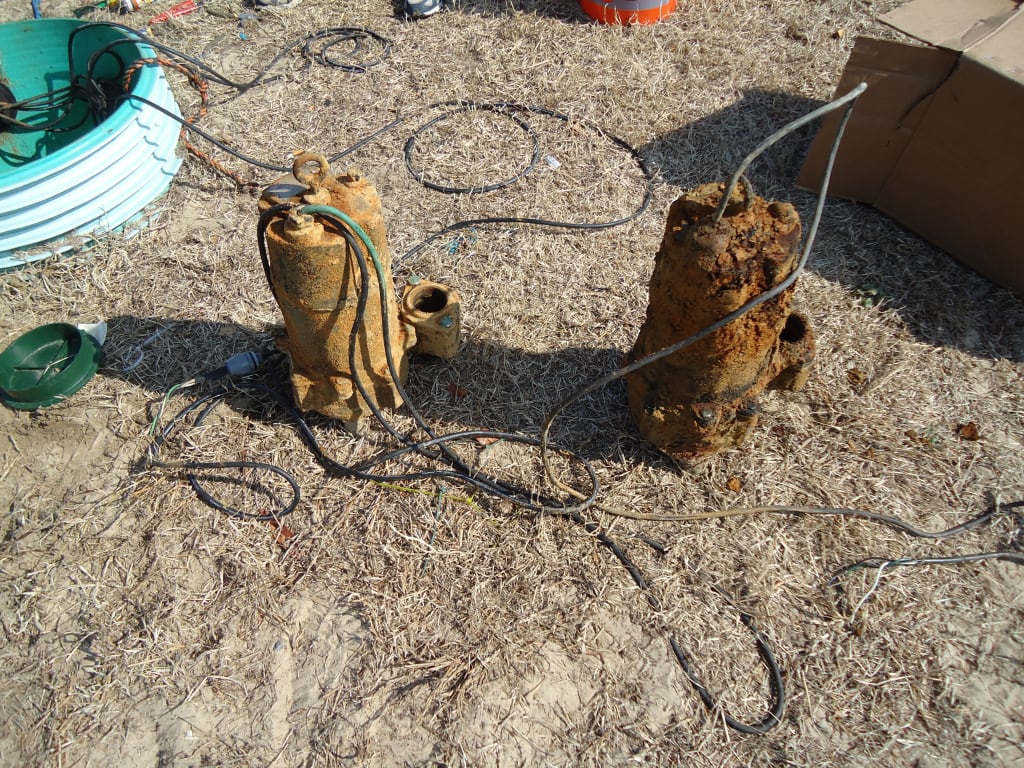

I bought a total of three of these pumps for this project.
