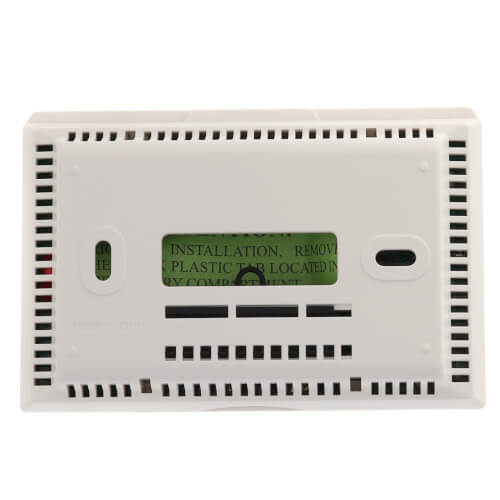

LuxPro Programmable Thermostat 5/1/1 Programming (2 Heat - 1 Cool)

A full-function, sleek thermostat at the right price, the LuxPro P621U "Universal" thermostat will control most single stage equipment as well as heat pumps and multistage systems up to 2 heat / 1 cool.

Features:

Universal compatibility for all system types except electric baseboard heat

A program for weekdays, Saturday & Sunday can be different

User selectable programmable or non-programmable operation

Exclusive Lux Speed Slide for easy programming

User selectable periods per day (2 or 4)

Graphical filter monitor

Keypad lockout for unauthorized users

Adjustable heat/cool temperature limits

Adjustable vacation hold (for 1-30 days)

Smart recovery - enables the set temperature to be reached by the programmed time

Temporary temperature override

Large lighted one touch display

For Use With:

Heating and cooling systems, including single and multi-stage heat pumps

2 stage heating and 1 stage cooling

Not for Use With:

120/240 VAC Line Voltage Systems

Dual Fuel Systems

Terminals: O,B, G, Y, RC, RH, W1, A, W2, C

Temperature Control Range: 45 to 90 Degrees F

Dimensions: 5.375" X 3.375" X 1.125"
