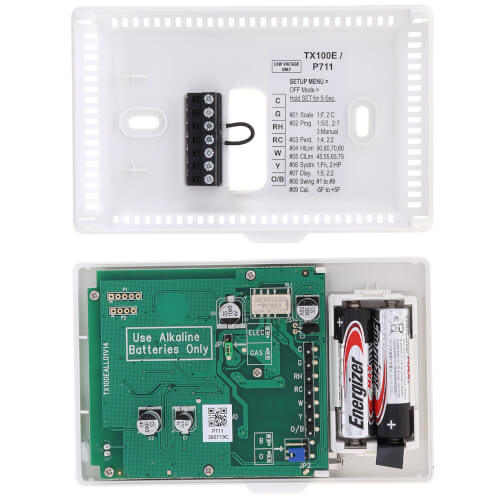

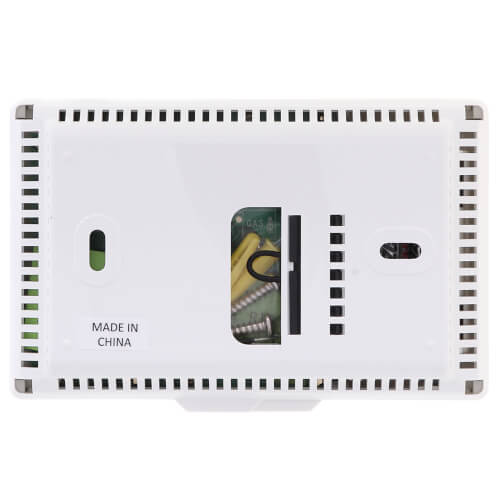

7 Day, 5/2-day Programming or Non-Programmable Thermostat, Horizontal Mount (1 Heat - 1 Cool)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$21.41 each
Out of Stock
MANUALS (2)
This item replaces: P711
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Programmable, 5-2 Day, Non-Programmable, 7 Day
24V
1 Heat/1 Cool
Horizontal
Battery, Hardwired
45°F to 90°F
Description
–
Features:
Installation (Compatible with):
Not Compatible with:
- Easy installation
- Program 7-day, 5/2-day, or non-programmable
- Easy-view back light
- Optional wall plate model WP567
- User option: 2 or 4 periods per day
- Keypad lock for unauthorized use
- Temporary override and manual hold
- Dual powered (2AA) Alkaline Batteries (included)
- Temporary compressor protection bypass
- 5/2 minute selectable time delay for equipment protection
- User temperature calibration
- Display option: fahrenheit or celsius temperature
- Adjustable heating and cooling limits
- Adjustable temperature differential/swing
Installation (Compatible with):
- For most 24V heating and A/C systems
- 1-heat/1-cool: gas, oil, electric or single stage heat pump systems (with no AUX/EMERG heat)
- 2-wire hydronic systems (hot water baseboard & radiator)
- Gas Millivolt heaters (wall heaters/furnaces & gas fireplaces)
Not Compatible with:
- Multi-stage heating and AC systems
- Multi-stage heat pumps
- 3-wire hydronic zone valve systems
- Line voltage systems (120/240 VAC)
Specs
–
| Application: | Heat Pump Multi-Stage (Heat/Cool) |
|---|---|
| Power Method: | Battery Hardwired |
| Programmability: | Programmable 5-2 Day Non-Programmable 7 Day |
| Stages: | 1 Heat/1 Cool |
| User Interface: | Push Button |
| Mount: | Horizontal |
| Temperature Range (F): | 45°F to 90°F |
| Features: | Backlight |
| Measures: | Fahrenheit Celsius |
| Voltage: | 24V |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
5 out of 2 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-2 of 2 reviews
I would buy again
Replaced an old thermostat and customer service was very helpful
HG
Valley,Al
4 years ago
Verified Buyer
Was this review helpful to you?
Review of the Lux P711-010. Working great as advertised
The main reason I purchased this thermostat was for the feature of the adjustable differential/swing. I now have it set for a differential of 1 1/2 degree ( 1.5 degree above set temp. before unit starts / 1.5 degree below set temp. before unit shuts off) as opposed to my old thermostat that has a non-adjustable 1 degree up / 1 degree down from set temp..
My unit currently cycles on/off less than half as many times as it did before.
This unit would be perfect if it would have the capability of being able to program in the schedule for the fan to cycle on & off completely independently from the condenser unit.
To overcome this, I've installed a 24vdc electronic timer on the wall next to this thermostat to accomplish this task.
SMonroe
Sarasota, FL.
5 years ago
Verified Buyer
