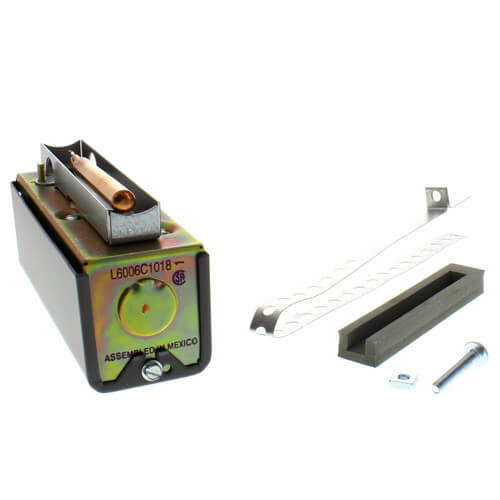

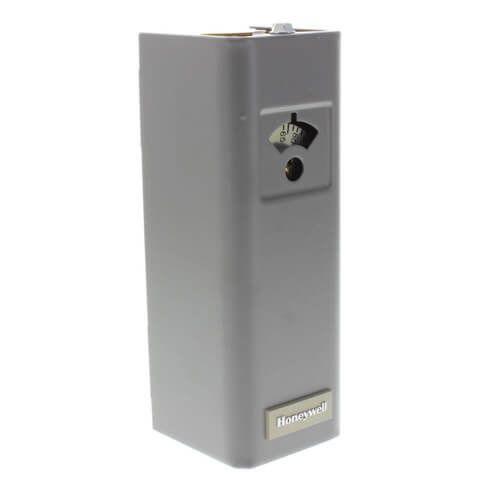

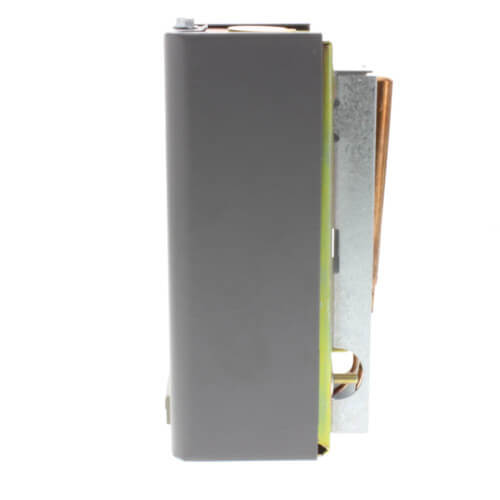

High or Low Limit & Circulator Strap-On Aquastat, 65-200-Degree(F) range, 5-30-Degree(F) Adj Differential, L6006C1018
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$151.65 each
In Stock
Get 196 Fri, Jan 24
More Available
Order by today, receive Friday
MANUALS (1)
This item replaces: L6006C1034
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
8A @ 120 Vac, 0.25 A @ 0.25 to 12 Vdc, 5.1A @ 240 Vac
5° to 30°F, Adjustable
SPDT
Vertical, Horizontal, Strap-On
65°F to 200°F
5-5/8"
Description
–
Strap-On Aquastat Controllers from Honeywell regulate the temperature of liquids in boilers, storage tanks, and more. These completely enclosed snap-acting switches operate on temperature rise to set point and are designed for circulator, low-limit, high-limit or unit heat control.
Features:
Features:
- Electrical ratings: Full load 9.8A PLUS 360VA, Ignition 250 VA pilot duty
- Single-pole double-throw switching
- Range of 65 to 200 degrees Fahrenheit with 5- to 30-degree differential
- Brackets for horizontal or vertical mounting
Specs
–
| Application: | Low Limit High Limit Circulator Control Strap-On |
|---|---|
| Switch Action: | SPDT |
| Temperature Range (F): | 65°F to 200°F |
| Electrical Rating: | 8A @ 120 Vac 0.25 A @ 0.25 to 12 Vdc 5.1A @ 240 Vac |
| Electrical Ratings (ALR): | 48A @ 120 Vac 30.6A @ 240 Vac |
| Differential: | 5° to 30°F Adjustable |
| Max Temp Differential: | 30°F |
| Min Temp Differential: | 5°F |
| Height: | 5-5/8" |
| Width: | 2" |
| Depth (Inches): | 2-1/8" |
| Max Ambient Temp (°F): | 150°F |
| Well Included: | No |
| Mount: | Vertical Horizontal Strap-On |
