5.5" 3 Speed Direct Drive Furnace Blower Motor (3/4 HP, 208-230V, 1075 RPM)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
10590 has been discontinued
Discontinued November 25, 2018
This product was discontinued by the manufacturer.
MANUALS (1)
Product Highlights
–
208/230V
1075 RPM
Reversible
3/4 HP
4.5 Amps
Description
–
MARS direct drive furnace blower motors are three speed standard efficiency models. All models
are electrically reversible and include 2 1/4 inch resilient rings for base mounting. These models
have all angle sleeve bearings and have open air over enclosures
Features:
Specifications:
Image displayed does not represent actual product.
Features:
- All angle sleeve bearing
- Rheem mounting holes
- 3 speeds
- 1/2 inch extended thru bolts
- 2-1/4 inch resilient rings
- 4 inch long, 1/2 inch diameter shaft
- For accessories see MARS Motor Catalog pages M–112 to M–114
Specifications:
- Class “B” insulation
- Single phase, 60 Hertz
- Thermal overload protected
- Fan duty, continuous, air over
- Open construction
- 26 & 30 inch leads

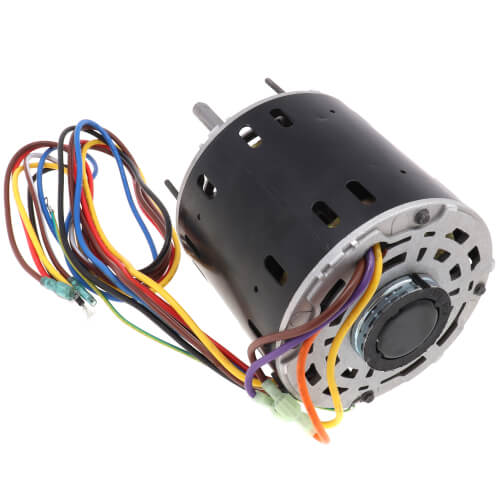

Image displayed does not represent actual product.
Specs
–
| Horse Power: | 3/4 |
|---|---|
| RPM: | 1075 |
| Voltage: | 208/230V |
| Bearings: | Sleeve |
| Enclosure Type: | Open Air Over |
| Rotation: | Reversible |
| Amperage: | 4.5 |
