$288.12 each
In Stock
Get 3 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115/230V
1075 RPM
Reversible
1, 3/4 HP
Belly Band
Description
–

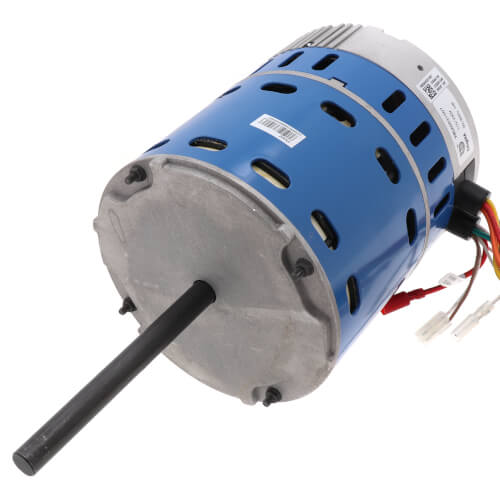

The Azure® Digi-Motor ® from MARS is a high efficiency variable speed direct drive blower
motor for a multitude of applications. Azure® is a replacement for both standard PSC and
Genteq X-13 motors.
Azure® features an auto sizing learn mode. In start-up learn mode, Azure® runs for approximately 2 minutes measuring the external static pressure of the system application. Azure® then assigns torque values to each of its speed taps self-programming itself to the correct horsepower for the application.
If none of the four speeds provides perfect airflow for the application or if duplicate speeds are desired on 2 or more taps, an optional hand held programmer (MARS No. 08502) can be used. The programmer connects to Azure® and displays the percentage of torque applied to the speed tap being energized. The percentage (motor speed) can then be increased or decreased and permanently set with the programmer. This tool overrides the motor torques established in the auto sizing mode.
Azure® features an auto sizing learn mode. In start-up learn mode, Azure® runs for approximately 2 minutes measuring the external static pressure of the system application. Azure® then assigns torque values to each of its speed taps self-programming itself to the correct horsepower for the application.
If none of the four speeds provides perfect airflow for the application or if duplicate speeds are desired on 2 or more taps, an optional hand held programmer (MARS No. 08502) can be used. The programmer connects to Azure® and displays the percentage of torque applied to the speed tap being energized. The percentage (motor speed) can then be increased or decreased and permanently set with the programmer. This tool overrides the motor torques established in the auto sizing mode.
Specs
–
| Horse Power: | 1 3/4 |
|---|---|
| RPM: | 1075 |
| Voltage: | 115/230V |
| Bearings: | Ball |
| Enclosure Type: | Open Air Over |
| Speeds: | 5 |
| Rotation: | Reversible |
| Mount: | Belly Band |
| Insulation Class: | B |
| Phase: | 1 |
