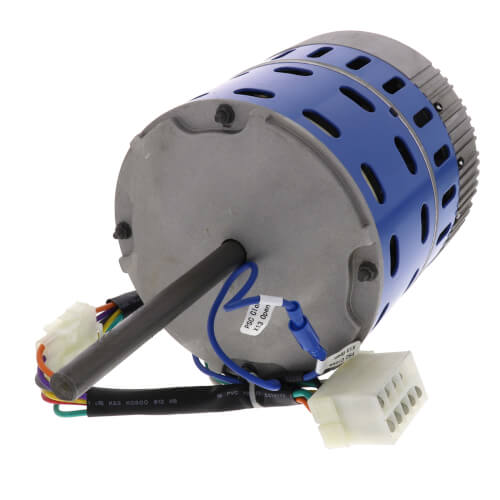

5.5" Azure Digi-Motor (1/3 - 1/2 HP, 115/230V, 1075 RPM)

The 10868 does not replace PSC or the X-13 motors, it replaces variable speed motors per the chart on the left of the literature below.

Azure® features an auto sizing learn mode. In start-up learn mode, Azure® runs for approximately 2 minutes measuring the external static pressure of the system application. Azure® then assigns torque values to each of its speed taps self-programming itself to the correct horsepower for the application.

If none of the four speeds provides perfect airflow for the application or if duplicate speeds are desired on 2 or more taps, an optional hand held programmer (MARS No. 08502) can be used. The programmer connects to Azure® and displays the percentage of torque applied to the speed tap being energized. The percentage (motor speed) can then be increased or decreased and permanently set with the programmer. This tool overrides the motor torques established in the auto sizing mode.

Specification:

• Class "B" insulation
• Thermal overload protected
• Operating temperature range: -20°C to 55°C (-4°F to 131°F)
• UL Recognized
