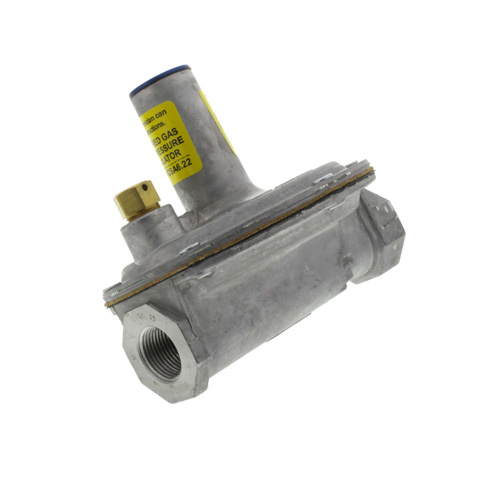

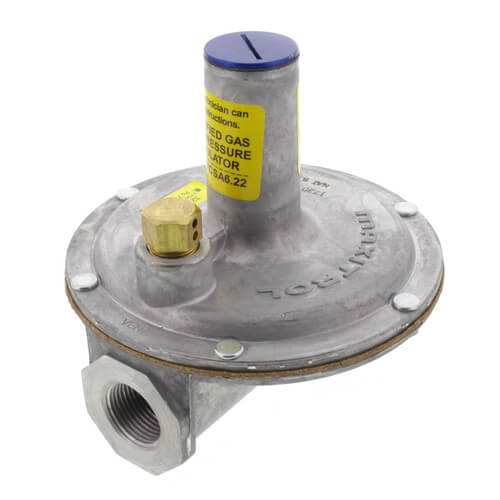

3/4" Line Regulator w/ Vent Limiter (600,000 BTU)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (1)
'/%3E%3C/svg%3E){kind=small}
Product Highlights
Description
This product should be installed by a licensed gas fitter.
325 Series pounds to inches regulators are for use on residential, commercial, and industrial applications. The 325 Series features a high leverage valve linkage assembly to deliver positive dead-end lock-up. The regulators are capable of precise regulating control from full flow down to pilot flow. Suitable for natural, manufactured, mixed gases, liquefied petroleum gases, and LP gas-air mixtures.
Specs
| Capacity (BTU): | 600000 |
|---|---|
| Size: | 3/4" |
| Spring Range: | 7" - 11" |
| Max Inlet Pressure: | 2 PSI |
Questions?
You May Also Need
1 Replacement Part
Need help finding a replacement part?
Product Reviews
Worked great for me
Excellent and fast delivery
I would buy again
Works with Tankless Water Heater
Item as advertised.
great service
Fast shipping
Certified Line Pressure Regulator
Perfect Fit!
Product Q&A
3 QuestionsQ: We are going to a 2psi system in the our house because of an increase in demand (generator). Can this be installed forward of our furnace prior to the utility company changing the meter? Will it pass the currently supplied low pressure, in and out?
Asked by M 13 years ago
Add your answer
Yes it will.
I can't speak to it passing the existing low pressure since I coordinated for the gas company on the same day. Regarding the utility company, most meters only have to have a spring replacement for 2PSI. My meter was not replaced.. The spring swap took 3 minutes, max. My inside pipe work was not 100% complete prior to the spring swap, so the gas was turned off at the meter pending the completion of the inside work. Johnny S. Slane (Shane)
Yes, you can install it with the low pressure. It will flow.
Yes it will pass the low pressure in and out. I did the same thing, installed the regulator prior to the gas company increasing pressure to 2 psi. No problems.
Q: does the model # 325-5AL have to be installed in the horizontal position?> or is it a multi poise position for install? thank you
Asked by karl 13 years ago
Add your answer
The 325-5AL can be installed in multiple positions unless it has a vent limiter installed on it. Then it is a horizontal position only. If needing a vent limiter for you installation. Make sure it is included with the regulator, you might have to order it separately.
Yes, it has to be installed horizontally because it has a vent limiter. Outdoor installation without a vent limiter can be any position.
Q: require outside vent
Asked by ken 13 years ago
Add your answer
Does not require outside vent with a vent limiter installed like the one in this picture has.
No, it does not require an outside vent. It does reguire the vent restrictor plug which in case of a diaphram rupture restricts the flow of gas escaping.
The information provided me does not indicate what model regulator is being asked about. I suspect it is a Maxitrol 325 which can be fitted with a "leak limiter" rather than venting outside. For specific information go to this link: http://www.maxitrol.com/Regulators/ventlimiting.asp Jim Shepherd Four wheels move the body, two wheels move the soul.
