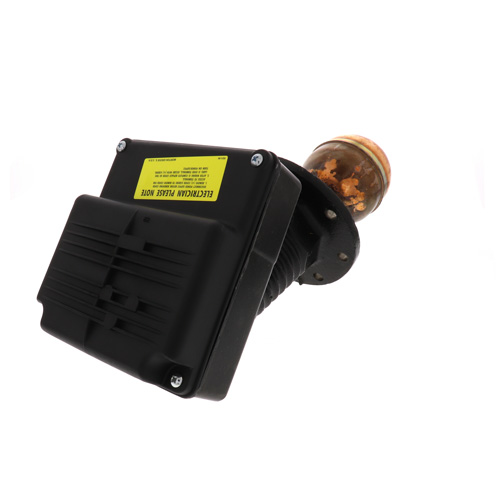

47-2, Mechanical Water Feeder w/ #2 Switch (LWCO Function)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,987.00 each
In Stock
Get 13 Tomorrow, Jun 5
Order by 6PM, receive Tomorrow
MANUALS (3)
This item replaces: 47-2
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
150 MAX PSI
11-7/8" Width
3/4"
Threaded Connection
1 Year from Installation or 2 Year from Date of Manufacture Warranty
Description
–
Specs
- For steam and hot water boilers with cold water feed
- Continuous maintenance of minimum safe water level, independent of electrical service
- Proportional feed action
- Quick hook-up fittings provided
- Quick-change replaceable cartridge valve and strainer
- No. 2 Switch
- Model 47 can be field upgraded with a No. 2 switch to add low water cut-off function
- Maximum water supply pressure 150 psi (10.5 kg/cm sq.)
- Maximum inlet water temperature 120 degrees F (49 degrees C)
- Maximum boiler pressure 25 psi (1.8 kg/cm sq.)
Specs
–
| Application: | Steam Boilers Hot Water Boilers |
|---|---|
| Type: | Float-Style |
| Max Pressure (PSI): | 150 |
| Max Vessel Pressure: | 25 psi |
| Reset Type: | Automatic |
| Switch: | #2 |
| Width (Inches): | 11-7/8" |
| Max Inlet Water Temp (F): | 120°F |
| Features: | Quick Hook-Up Fittings |
| Electrical Ratings (AFL): | 10.2 A @ 120 VAC 5.1 A @ 240 VAC |
| Electrical Ratings (ALR): | 30.6 @ 240 VAC 61.2 @ 120 Vac |
| Pilot Duty Rating: | 125 VA |
| Size: | 3/4" |
| Connection Type: | Threaded |
| Warranty: | 1 Year from Installation or 2 Year from Date of Manufacture |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
14 Replacement Parts
37-26, Head Gasket for 47
SKU: 313800
McDonnell & Miller
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
4.75 out of 12 reviews
92% would recommend this product
5 star
92%
4 star
0%
3 star
0%
2 star
8%
1 star
0%
Most Liked Positive Review
just in time
I installed this boiler over 25 years ago. It was time to retire the old McDonnell Miller feeder. Am glad to deal AGAIN with Supply House. Great service and shipping. Am ready for WINTER. Thanks Supply House.
VS
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Not happy with the product
They must not make them like they used to.. Had one fail after only 2 years of use. It failed just outside the warranty window and the company did not stand behind the product. Postmortem showed the float had pinhole leak and became waterlogged. The float shell does not appear as thick as the older versions of this product. I still bought the same one because of the existing hookups to the boiler.
Showing 1-10 of 12 reviews
Steam Boiler Repair
This low water cut-off was a direct replacement for the existing unit and went in without any issues....Reasonably priced with super fast shipping
Old Skool
Downingtown, PA
1 years ago
Verified Buyer
Was this review helpful to you?
Yes
It was the right part and got our customer up and running again.
JCH
Fresno, CA
1 years ago
Verified Buyer
Was this review helpful to you?
Yes
The Boiler feeder and low water cut off system worked and installed properly.
KT
Ohio
1 years ago
Verified Buyer
Was this review helpful to you?
Right product, Good price. Great service. Fast delivery.
I was really impressed that they got me this part the next day with no add'l shipping charge. It is an expensive part, but was cheaper than I could get it locally and it was fast. It was the right part and they have very good customer service. I will definitely buy from them again.
Jon DIY
Burlington VT
6 years ago
Verified Buyer
Was this review helpful to you?
Not happy with the product
They must not make them like they used to.. Had one fail after only 2 years of use. It failed just outside the warranty window and the company did not stand behind the product. Postmortem showed the float had pinhole leak and became waterlogged. The float shell does not appear as thick as the older versions of this product. I still bought the same one because of the existing hookups to the boiler.
Pete
Brooklyn, NY
7 years ago
Was this review helpful to you?
Very satisfied
I Purchased a new water feeder low water cut out assembly for my 46 year old boiler. First of all I was happy just to find the exact parts as original, but also found them at a fair price and with a quick delivery time.
Everything fit great and the included instructions were very helpful.
I would buy from Supply house again !
Kevin S.
Trenton Michigan
9 years ago
Verified Buyer
Was this review helpful to you?
Product was exactly what I expected and promised!
Product description and spec sheets were very instrumental in helping me select what I needed and solving my problem. The delivery came exactly when it was promised. Overall experience was great!
Shawn
Chicago
9 years ago
Verified Buyer
Was this review helpful to you?
47-2 Water feeder
Got here quick nicely packaged and easy to follow instructions all at great price.
jim
Cortlandt Mnr., N.Y.
9 years ago
Verified Buyer
Was this review helpful to you?
Ultra quick shipment
Great product. Still built strong. Should last many years just remember to clean the filter assembly every year.
Peter
Brooklyn NY
9 years ago
Was this review helpful to you?
just in time
I installed this boiler over 25 years ago. It was time to retire the old McDonnell Miller feeder. Am glad to deal AGAIN with Supply House. Great service and shipping. Am ready for WINTER. Thanks Supply House.
urbanowicz
Maryland
10 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: Does this product comes with all the fittings.
Asked by Kamal 15 years ago
Add your answer
Verified Reply- PexSupply StaffPlease refer to the Parts Breakdown below for a full list of included components: http://s3.pexsupply.com/manuals/1311347990969/58363_PROD_FILE.pdf
Was this review helpful to you?
- Janitor man
Yes, all you need to install on boiler.
Was this review helpful to you?
