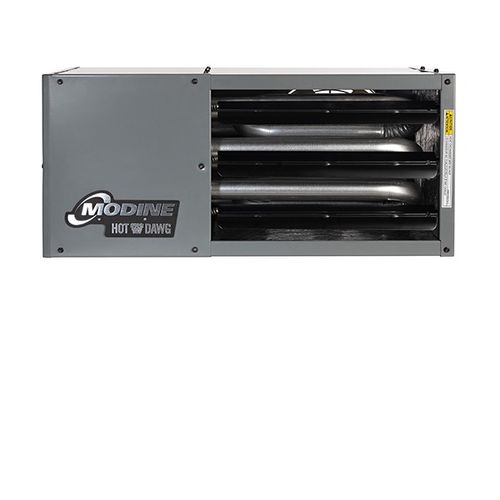

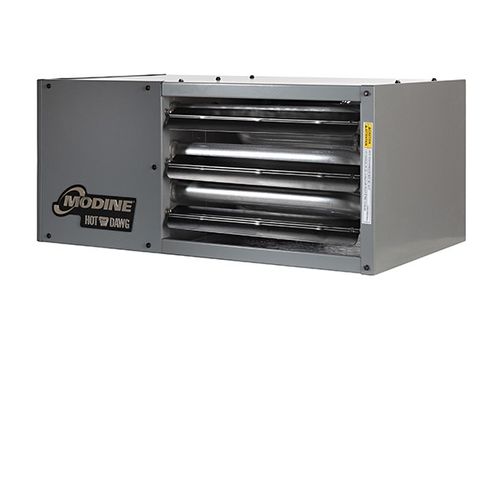

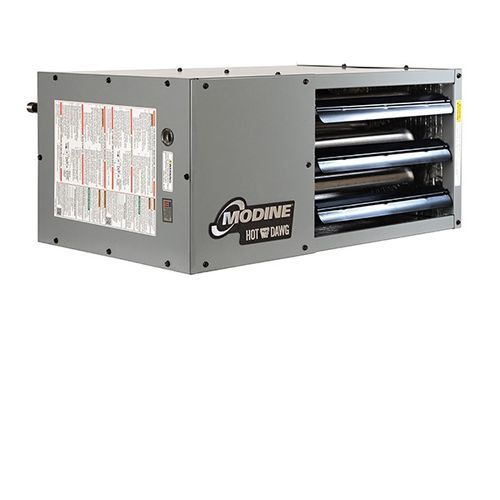

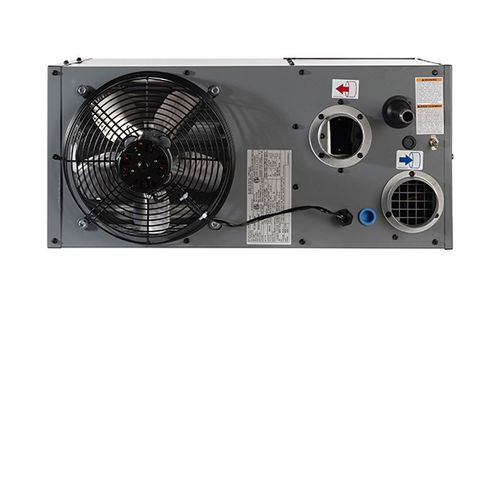

HDS45 Hot Dawg Natural Gas Separated Combustion Heater w/ Stainless Heat Exchanger (45,000 BTU)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,584.07 each
In Stock
Get 1 Wed, Jul 8 - Fri, Jul 10
Fuel Type:
Natural Gas
BTU Input:
45000
Stages:
1
Heat Exchanger:
Stainless Steel
Vent Type:
Separated Combustion
MANUALS (4)
This item replaces: HDS45SS0111FBAN
Lift Gate
–
This product weighs 60 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
36000 Max BTUs
Natural Gas
Separated Combustion
45000 BTUs
1/15 HP
1
Description
–
Overview:
- Tubular Separated Combustion Propeller
- 45,000 BTU/hr input
- Application: 2 to 2-1/2 Car Garage
- Heat Exchanger: Stainless Steel
- Direct Spark Ignition
- 115V, 60 hertz, single phase
- Single Stage, Natural Gas
- Hush-puppy quiet operation
- Right or left hand controls available on all 30-75 units. Gas, electrical and flue connections can be changed by simply flipping the Hot Dawg over
- Uses natural or propane gas
- Lightweight, easily installs 1" from ceiling with only two angle brackets (included on sizes 30-75, accessory for 100, 125)
- Full 10-year warranty on heat exchanger
- Standard power exhaust simplifies side-wall or roof venting with small-diameter vent pipe
- Permanently-lubricated motor for trouble-free dependability
- single stage, direct spark ignition, 100% shut-off with continuous retry
- Low-profile design and neutral color to blend in with decor
- The separated combustion Hot Dawg draws its combustion air from outside the work space, ensuring the unit always has plenty of fresh, clean air to breathe.
- The fresh-air supply reduces common concerns about dusty, dirty or humid applications, providing greater durability and reduced maintenance.
- Drawing combustion air from the outside increases overall heating efficiency.
- External gas connections.
Specs
–
| Vent Type: | Separated Combustion |
|---|---|
| Entering Airflow (CFM) @ 70°F: | 720 |
| Max Mounting Height (ft): | 10 feet |
| Heat Exchanger: | Stainless Steel |
| BTU Input: | 45000 |
| Horse Power: | 1/15 |
| BTU Output: | 36000 |
| Stages: | 1 |
| Air Temp. Rise (°F): | 46°F |
| Fuel Type: | Natural Gas |
| Product Type: | Unit Heater |
