8814R has been discontinued
Discontinued May 24, 2016
This product was discontinued by the manufacturer.
MANUALS (3)
Direct Replacement:

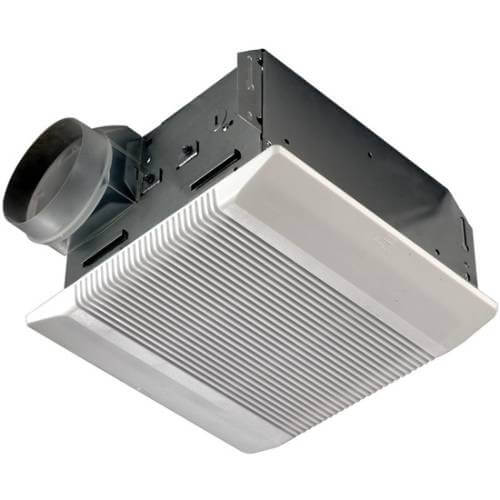

Model AE110 Energy Star Rated & HVI Certified Bath Fan (110 CFM)
Product Highlights
–
110 CFM
4"
4 Sones
9" x 9" x 5-3/4"
10-1/4" x 11-1/2"
1 Year Warranty
Description
–
This ventilation fan is ideal for bath and dressing areas with an existing lighting source. This maximum performance exhaust fan features a prewired, plug-in motor for easy installation.
Features:
Features:
- 110 CFM, 4.0 Sones
- 4" snap-on duct collar
- Room-to-room fan stretches energy dollars
- Ideal for larger baths up to 105 sq. ft.
- UL listed for use over bathtubs and showed when used with GFI branch circuit wiring.
- Grille extends 7/8" below ceiling
- White pebble grille finish
- Fits 2" x 6" wall or ceiling construction
Specs
–
| Duct Size: | 4" |
|---|---|
| Air Flow Capacity (CFM): | 110 |
| Sone: | 4 |
| Amperage: | 1.2 |
| Product Type: | Ventilation Fan |
| Voltage: | 120v |
| Hertz: | 60 |
| Housing Dimension: | 9" x 9" x 5-3/4" |
| Grille Dimension: | 10-1/4" x 11-1/2" |
| Grille Material: | Polymeric |
| Housing Material: | Galvanized Steel |
| Grille Finish: | White |
| Warranty: | 1 Year |
