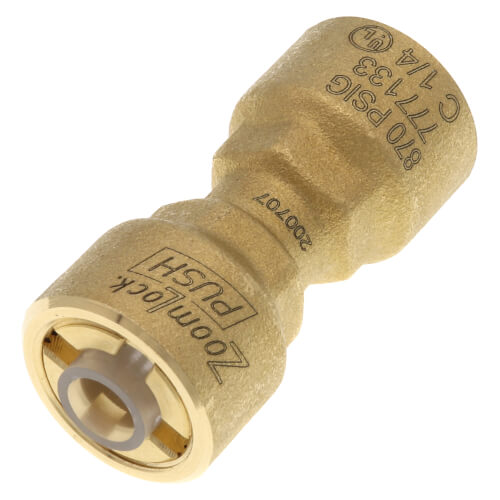

1/4" ZoomLock PUSH Removable Coupling (PZKPR-C4)777133 1/4" ZoomLock PUSH Removable Coupling (PZKPR-C4)
Free Shipping On orders over $99
Need replacement parts for this unit?
- No press tool or jaws needed
- Fast and easy install
- Cleaner system installs
- Secure, leak-free connections
- Safer conditions, no fire hazards
- No hot-work permits
- No need to nitrogen-purge
- Flexible access to job sites
- Connection Size: 1/4"
- Applications: High Pressure HVAC/R
- Continuous Operating Temperature: 250°F / 121°C
- O-Ring Temperature Rating: -40°F to +300°F, -40°C to +149°C
- Maximum Rated Pressure (MRP): 700 psi / 48 bar
- Minimum Burst Pressure (UL 207): 2,100 psi / 145 bar
- Vacuum Pressure Capability: 500 Microns
- External Leak Rate: <0.1 Ounces of Helium per Year at Operating Pressure Range
- Vibration Resistance: Conforms to UL109
- Fitting Body: Refrigerant Grade Copper, per ASTM-B75 or ASTM-B743
- O-Ring: HNBR
- UL Listed SA7511 Approved use for field and factory installations
- ASHRAE-15, ANSI 15, ASME B31.5, ANSI 31.5
|Max Temp (F):||
|Min Temp (F):||
