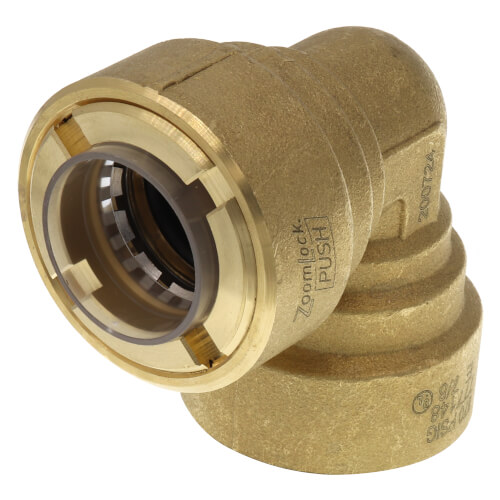

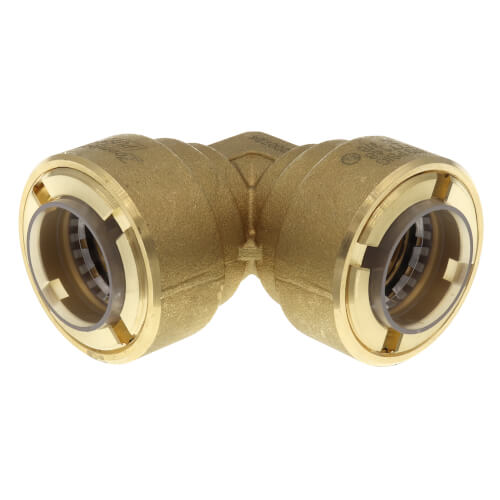

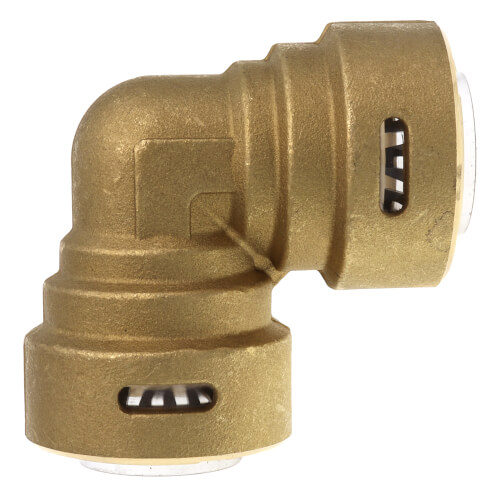

7/8" ZoomLock PUSH Removable 90-Degree Elbow (PZKPR-90E14)

HVACR pros know that time is money. ZoomLock PUSH push-to-connect refrigerant fittings eliminate brazing, flames, fire spotters, or risks from installing traditional HVACR fittings. ZoomLock PUSH offers a way for contractors to connect refrigerant lines in seconds, boosting efficiency while providing the safety and reliability you expect from Parker. ZoomLock PUSH is ideal for Residential AC, HP, Mini-split and Refrigeration installations.

Features:

• No press tool or jaws needed
• Fast and easy install
• Cleaner system installs
• Secure, leak-free connections
• Safer conditions, no fire hazards
• No hot-work permits
• No need to nitrogen-purge
• Flexible access to job sites

Specifications:

• Connection Size: 7/8"
• Applications: High Pressure HVAC/R
• Continuous Operating Temperature: 250°F / 121°C
• O-Ring Temperature Rating: -40°F to +300°F, -40°C to +149°C
• Maximum Rated Pressure (MRP): 700 psi / 48 bar
• Minimum Burst Pressure (UL 207): 2,100 psi / 145 bar
• Vacuum Pressure Capability: 500 Microns
• External Leak Rate: <0.1 Ounces of Helium per Year at Operating Pressure Range
• Vibration Resistance: Conforms to UL109
• Fitting Body: Refrigerant Grade Copper, per ASTM-B75 or ASTM-B743
• O-Ring: HNBR
• UL Listed SA7511 Approved use for field and factory installations
• ASHRAE-15, ANSI 15, ASME B31.5, ANSI 31.5
