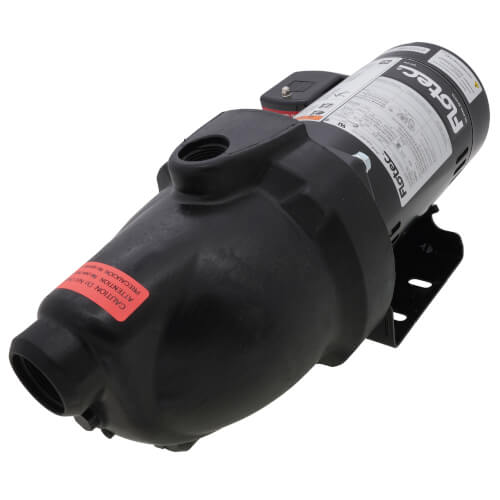

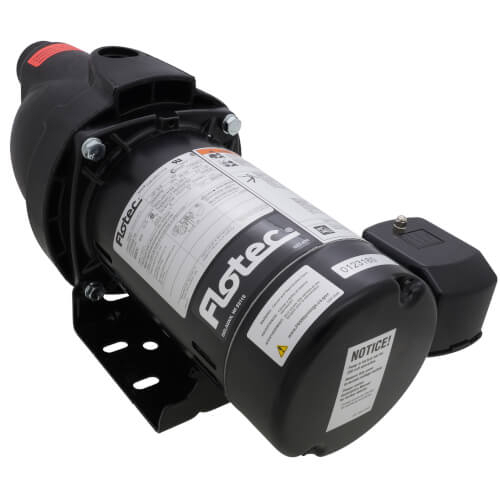

FP4022 Shallow Well Jet Pump, Thermoplastic (115V/230V, 3/4 HP)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$368.94 each
In Stock
Order by today, receive Wednesday
MANUALS (4)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Thermoplastic
115/230V
3/4 HP
12 MAX GPM
78 MAX PSI
1-1/4"
Description
–
Features
- Perfect for shallow wells (depth-to-water less than 25')
- Thermoplastic construction for higher corrosion resistance
- 1-1/4" Suction / 1" Discharge
- Comes with pre-wired 30/50 pressure switch
- Warranty: 1 year limited
- Body Construction: Thermoplastic
- Maximum Capacity: 12 GPM
- Flow at 10' List and 40 PSI: 9.7 GPM
- Max Lift: 25'
- Maximum Pressure: 78 psi
- Pressure Switch Setting: 30/50
- Suction Pipe Size: 1-1/4" NPT
- Discharge Pipe Size: 1" NPT
- Amp Draw (full load): 6.1 amps on 230v / 12.2 amps on 115v
- Voltage: 230v / 115v, 60 Hz
- Recommended Breaker: 15 amp on 230v / 20 amp on 115v
- Maximum Water Temperature: 140 °F (60 °C)
Specs
–
| Application: | Shallow Well |
|---|---|
| Voltage: | 115/230V |
| Horse Power: | 3/4 |
| Max Flow (GPM): | 12 |
| Max Pressure (PSI): | 78 |
| Material: | Thermoplastic |
| Inlet Size: | 1-1/4" |
| Hertz: | 60 |
| Type: | Jet Pump |
| Warranty: | 1 Year Limited |
Contact
+
Happy Labor Day!
Our Customer Support will be closing early in honor of Labor Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
9am–6:45pm
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
Showing 1-1 of 1 reviews
Great Product except for one thing
The Flotec FP4022 Shallow Well Jet pump is a great product, except for one thing. The problem is that the thermoplastic housing near the inlet port is very weak and need reinforcing. It is a fine line between tightening the inlet fitting enough to prevent a leak without over tightening it without cracking the housing and ruining the pump. The housing needs reinforced to make this less likely. Next time I will consider re-plumbing the pump-house to use a pump with stainless steel housing, such as the Grundfos JP PS 16 05 154 also sold at SupplyHouse
PlumbingRocks
Austin, TX
5 days ago
Verified Buyer
Was this review helpful to you?
