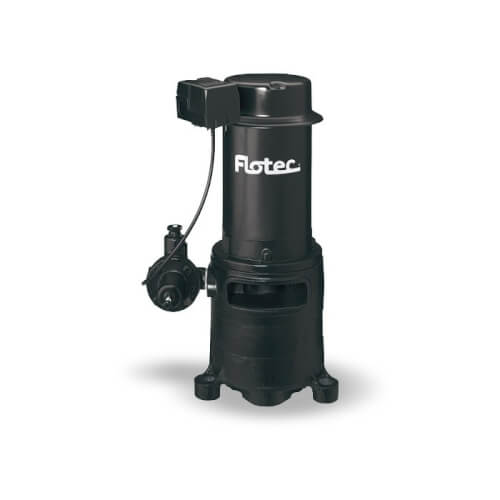

FP4432 Vertical Multi Stage Deep Well Non-Submersible Pump, Cast Iron (115/230V, 1 HP)
Hover image to zoom
Home
Plumbing Supplies
Pumps
Well Pumps
Shallow Well Pumps

FP4432 Vertical Multi Stage Deep Well Non-Submersible Pump, Cast Iron (115/230V, 1 HP)

Brand:
Pentair-Flotec
SKU:
FP4432-01
Rating:
(0)
Q&A:
(0)
FP4432 Vertical Multi Stage Deep Well Non-Submersible Pump, Cast Iron (115/230V, 1 HP)
Hover image to zoom
$738.90 each
In Stock
In Stock
Get 2 Tue, Apr 4 - Thu, Apr 6

Lift Gate

–
This product weighs 73.2 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Material icon
Cast Iron
Voltage icon
230/115V, 230v
Max Flow (GPM) icon
12 MAX GPM
Horse Power icon
1 HP
Inlet Size icon
1-1/4"
Warranty icon
1 Year Limited Warranty

Description

–
FP4432 Vertical Multi Stage Deep Well Non-Submersible Pump, Cast Iron (115/230V, 1 HP)

Features:
  • Cast Iron Vertical Deep Well Pump
  • Vertical deep well jet pump can be used in 4" diameter or larger wells up to 260'
  • Vertical deep well jet pump can be used in 2" diameter wells up to 180'
  • Superior Performance
  • Depths to water of 50' or more
  • Maximum depth of 260'
  • Rugged Housing
  • Durable cast iron construction
  • High Capacity
  • Up to 12 gallons per minute at 50 PSI
  • Heavy-Duty Dual-Voltage Motor
  • Preset at 230V, also allows for 115V
  • Pipe size required:
  • 1-1/4" suction, 1" drive, 1" discharge
  • Prewired Factory-Set 40/60 Pressure Switch
  • Pressure gauge and mounting feet also included
  • Jet kit sold separately
  • 1 Year Limited Warranty


Specifications:
  • Gallons Per Minute: 12 Gallons
  • Inlet Diameter: 1-1/4 Inch
  • Outlet Diameter: 1 Inch
  • Self Priming: Yes
  • Housing Material: Cast Iron
  • Suction Head: 260 Feet
  • Submersible: No

Specs

–
Application:

Shallow Well

Voltage:

230/115V

230v

Max Flow (GPM):

12

Horse Power:

1

Material:

Cast Iron

Inlet Size:

1-1/4"

Type:

Jet Pump

Warranty:

1 Year Limited
