Magnetic Float Switch for Metal Secondary Drain Pans

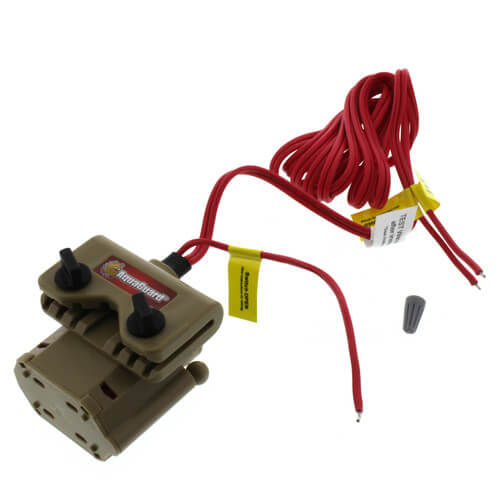

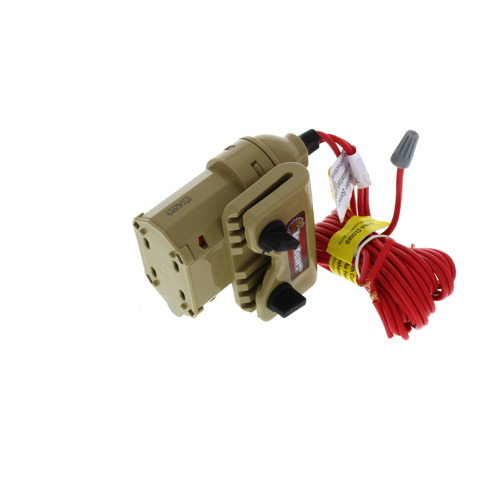

The AguaGuard AG-1100+ is the industry leading magnetic float switch for metal secondary drain pans and has a trigger sensitivity of less than 1/2" of condensate overflow. When the highly buoyant float activates the precision magnetic switch, the AquaGuard AG-1100+ will automatically shut off the HVAC/R system and activate any connected alarm. The AquaGuard AG-1100+ has been redesigned with a higher 24VAC, 5 amp capacity to protect against power fluctuations and features a smaller, more compact footprint than our original AquaGuard AG-1100. Incredibly easy to install in ten seconds or less, the AguaGuard AG-1100+ can be mounted to a metal secondary drain pan by simply tightening two thumbscrews without intruding into the pan. The AquaGuard AG-1100+ also has an easy lift float pin test knob to ensure sensor reliability. The AquaGuard AG-1100+ magnetic float switch's protective cover keeps out debris, pests and insulation that can become trapped and block or clog competitors' float switches, which causes them to fail. Plus, with a normally open 3rd wire for optional external alarms, digital controllers or energy management systems, the AquaGuard AG-1100+ can be used in both residential and commercial applications. For additional features, the AquaGuard AG-1100+ can be combined with our AG-9100 External Audible & Visual Remote Alarm, which can be conveniently located over 250 feet away from the condensate overflow switch.

Features:

• Industry Leading Magnetic Float Switch for Metal Secondary Drain Pans
• High Capacity 5 Amp, 24Volt AC Sensor
• Easy, Drill-Free Installation
• Residential and Commercial Applications
• Lift Float Pin Test Knob
• Protective Housing Keeps Out Insulation, Pests, and Debris
• Normally Open 3rd Wire for Optional External Alarm, Digital Controller, or Energy Management System
• US Patents and Patents Pending
• UL 508 Approved
