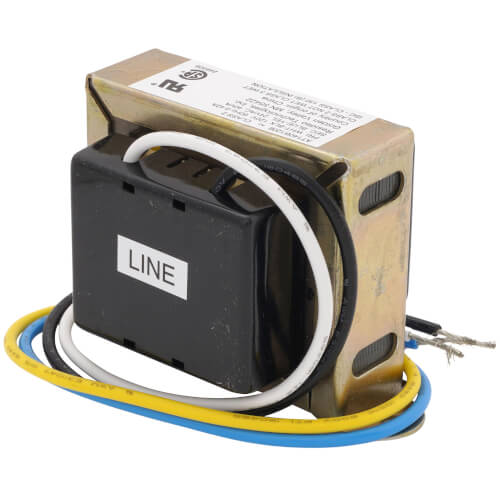

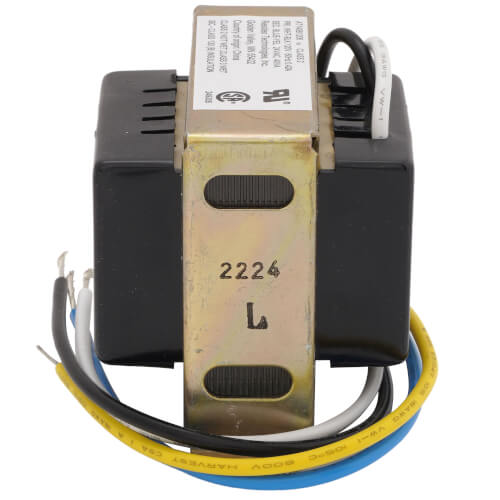

Foot Mounted 120 Vac Transformer with 9 in. Lead Wires and Plastic End Caps, AT140B1206
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$24.91 each
In Stock
Get 12 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (3)
This item replaces: 80160050, AT140B1370
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Foot
-20°F - 105°F
1-11/16"
3-1/2" Width
3-5/8" Depth
Description
–
Features
Specifications
- Rated at 40 VA.
- Color-coded leadwires for primary connections and screw terminals for secondary connections, fixed 1/4 inch (6 mm) male quick-connects or color-coded leadwires for both primary and secondary, are standard.
- Meet NEC Class 2 requirements.
- Meet Underwriters Laboratories Inc. Standard UL 1585 and are identified. Class 2 not wet, Class 3 wet.
Specifications
- Description: Foot mounted 120 Vac Transformer with 9 in. leadwires and plastic end caps
- Electrical Ratings: 120 Vac
- Electrical Ratings -Secondary Voltage: 27 V.O.C.
- Frequency: 60 Hz
- Mounting: Foot-mounted
- NEMA Rating: No
- Electrical Connections (Primary)(in.): 9 in. lead wires
- Electrical Connections (Secondary)(in.): 9 in. lead wires
- Electrical Ratings -Output: 24 Vac at 40 VA
- Dimensions: 1-11/16 in. high x 3-1/2 in. wide x 1-3/4 in. deep
- Temperature Ratings: -20 F to +105 F
- Includes: Plastic end caps
Specs
–
| Application: | 24v Controls |
|---|---|
| Voltage (Primary): | 120V |
| Voltage (Secondary): | 27 V.O.C. |
| Mount: | Foot |
| VA Rating: | 40 |
| Wiring: | 9" leadwires |
| Electrical Output: | 24 Vac at 40 VA |
| Hertz: | 60 |
| Temperature Range (F): | -20°F - 105°F |
| NEMA Rating: | None |
| Height: | 1-11/16" |
| Width (Inches): | 3-1/2" |
| Depth (Inches): | 3-5/8" |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Mount
VA Rating
CURRENT ITEM
Foot
40
Product Reviews
5 out of 3 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-3 of 3 reviews
I would buy this product again.
Everything works great
C
WV
2 years ago
Verified Buyer
Was this review helpful to you?
excellent replacement for weil mclean
This transformer is manufactured by Honeywell. It has the same specs as the original weil mclean part which is also made by Honeywell.The only difference is there is no connector to the control module but is half the price.Just reuse the connector from the original.
Bernie
West Hartford, Ct
12 years ago
Verified Buyer
Was this review helpful to you?
Helpful for repair of furnace.
The product helped when I needed. It got my furnace back up and running.
Mr. fix-it
Tinley Park, Illinois
12 years ago
Verified Buyer
Was this review helpful to you?
