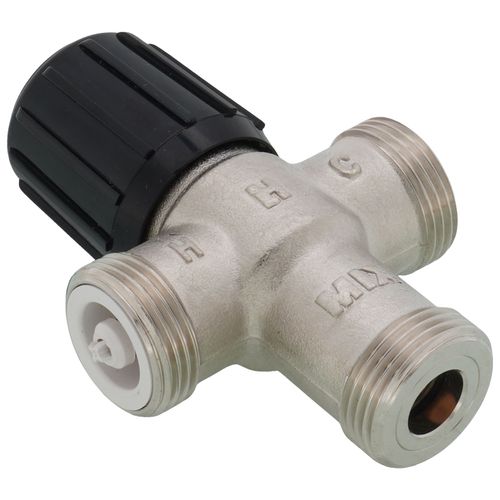

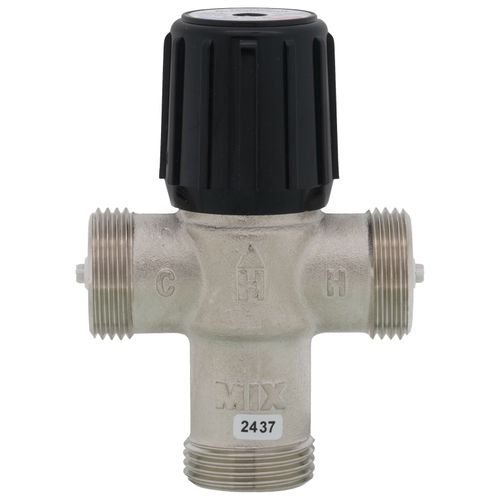

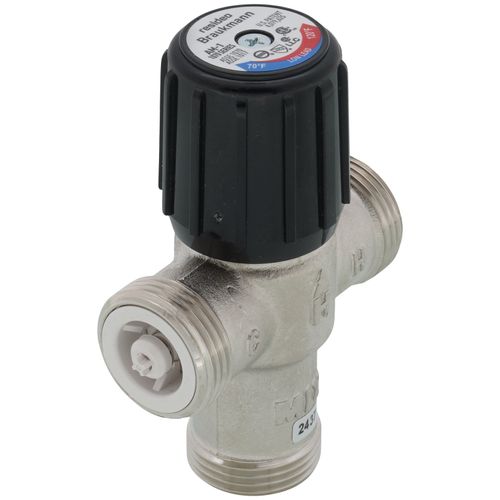

AM1 Mixing Valve Body Only, C1070 (70-120F)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$112.04 each
In Stock
Get 6 Tue, Jul 7
Order by today, receive Tuesday
Temperature Range (F):
70°F - 120°F
MANUALS (3)
This item replaces: AM102C1070-USTG-LF, AM101C1070-USTG-LF, AM102R-USTG-1, AM100C1070-USTG-LF
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
MNPT x MNPT, C x C Connection
1/2"
1.8 Cv
120°F Max Temp
70°F Min Temp
70°F - 120°F
Description
–
Mixing Valve Body (AM1) for use with 1/2", 3/4" and 1" fittings.
The Resideo AM-1 series accurately adjusts, maintains, and limits the hot water temperature to a desired setting selected by the user. By installing a Resideo AM-1 mixing valve, raising water heater storage temperature setting, and limiting mixed outlet water temperature to a safe temperature, more usable hot water is available.
Specifications:
- Application: Scald prevention in Domestic water; Nursing homes; Public facilities; Automatic faucets; Industrial applications; Photo processing
- Maximum Safe Operating Pressure (psi): 150 psi
- Maximum Safe Operating Pressure (kPa): 1034 kPa
- Comments: Low lead Content <.25% by weighted average
- Approvals, Canadian Standards Association: CSA Certified
- Operating Temperature Range (C): 21 C to 49 C
- Approvals, Others: NSF/ANSI; IAPMO
- Connection Type: Male NPT
- Minimum flow rate (gpm): 0.5 gpm
- Pipe Size (inch): Will work with 1/2", 3/4" and 1" fittings
- Fluid Temperature (C): Cold Inlet: 4 C to 27 C; Hot Inlet: 49 C to 82 C; Mixed Outlet: 21 C to 49 C
- Fluid Temperature (F): Cold Inlet: 39 F to 80 F; Hot Inlet: 120 F to 180 F; Mixed Outlet: 70 F to 120 F
- Capacity (Cv): 1.8 Cv
- Materials (Body): Teflon-Coated, Nickle-Plated Low Lead Brass
- Minimum flow rate (lpm): 1.9 lpm
- Materials (Packing): EPDM O-rings
- Approvals, ASSE: 1017 and 1070
Specs
–
| Flow Capacity (Cv): | 1.8 |
|---|---|
| Temperature Range (F): | 70°F - 120°F |
| Type: | Mixing Valve |
| Includes: | Gauge |
| Standards Met: | ASSE 1017 ASSE 1070 |
| Connection Type: | MNPT x MNPT C x C |
| Connection Method: | Threaded Sweat |
| Application: | Point of Source Point of Use |
| Size: | 1/2" |
| Max Temp (F): | 120°F |
| Min Temp (F): | 70°F |
